*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

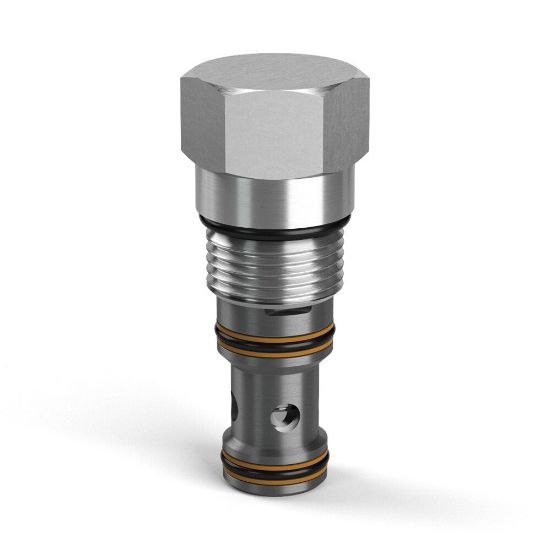

Spool Type Logic Element - R04E3-5.0V

Name: Spool Type Logic Element - R04E3-5.0V
SKU: R04E3-5.0V

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

Backordered

SKU R04E3-5.0V

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Configuration	Normally Closed
Flow Direction	Nose to Side (1-2)	Dampening Orifice Included	No
Switching Pressure	73 PSI, 5 BAR	Maximum Flow Rate	45 GPM, 170 L/MIN
Seal Material	Fluorocarbon	Body Material	n/a
Function	Logic Valve	Division	Hydraulic Cartridge Systems Division
Vented	Internal	Weight	0.3 lb
Cavity Size	C10-3S	Actuation Type	Pilot to Close
Flow Direction	Nose to Side (1-2)	Operation Type	Pilot Operated
Pilot Location	External	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-26 °C	Dampening Orifice Included	No
Maximum Operating Pressure	420 bar	Division	Mobile Hydraulic Systems Division Europe
Maximum Inlet Pressure Rating	420 bar	Installation Torque	50 Nm
Configuration	Normally Closed	Maximum Operating Temperature	+400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-15 to +400 °F
Switching Pressure	73 psi	Flow Rate	100 @ 100 PSI (7 BAR) Nominal L/min
Leak Rate	50 @ 1450 PSI (BAR) cm3/min	Maximum Flow Rate	45 Gal/min
