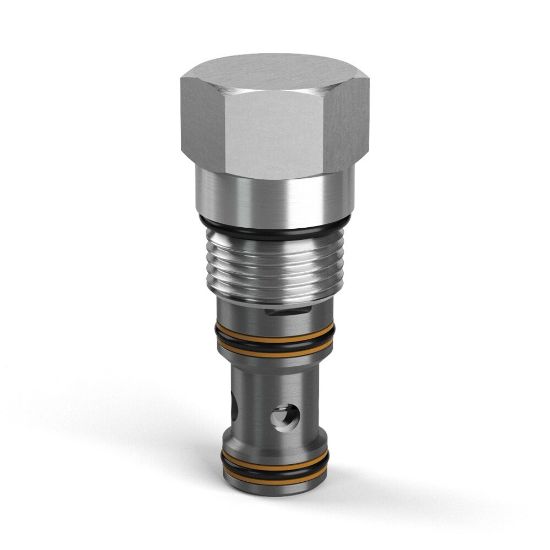

Spool Type Logic Element - R04F3-1.0N

Name: Spool Type Logic Element - R04F3-1.0N
SKU: R04F3-1.0N

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Availability:

Backordered

SKU R04F3-1.0N

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Configuration	Normally Closed
Flow Direction	Nose to Side (1-2)	Dampening Orifice Included	Yes
Switching Pressure	14.5 PSI, 1 BAR	Maximum Flow Rate	45 GPM, 170 L/MIN
Seal Material	Nitrile	Body Material	n/a
Function	Logic Valve	Division	Hydraulic Cartridge Systems Division
Vented	Internal	Weight	0.14 kg
Cavity Size	C10-3S	Actuation Type	Vent to Open
Flow Direction	Nose to Side (1-2)	Operation Type	Pilot Operated
Pilot Location	Internal	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Dampening Orifice Included	Yes	Minimum Operating Temperature	-34 °C
Maximum Operating Pressure	420 bar	Division	Mobile Hydraulic Systems Division Europe
Maximum Inlet Pressure Rating	6000 psi	Installation Torque	37 lb-ft
Configuration	Normally Closed	Maximum Operating Temperature	+121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-34 to +121 °C
Flow Rate	100 @ 100 PSI (7 BAR) Nominal L/min	Leak Rate	50 @ 1450 PSI (BAR) cm3/min
Maximum Flow Rate	45 Gal/min	Switching Pressure	14.5 psi
