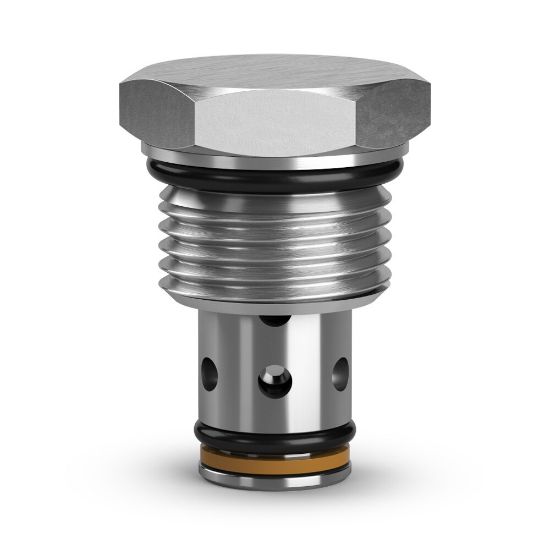

Standard Check Valves - D02B2-6.9V

Name: Standard Check Valves - D02B2-6.9V
SKU: D02B2-6.9V

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Availability:

Backordered

SKU D02B2-6.9V

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Cracking Pressure	100 PSI, 6.9 BAR
Maximum Flow Rate	21 GAL/Min, 80 L/MIN	Maximum Operating Temperature	400 °F
Weight	0.05 kg	Seal Material	Fluorocarbon
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
For Fluid Type	Mineral-based Hydraulic Fluids	Operating Temperature	-26 to 204 °C
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15 °F	Maximum Operating Pressure	420 bar
Actuation Type	Pressure Sensing	Division	Mobile Hydraulic Systems Division Europe
Cavity Size	C08-2	Valve Material	Hardened Steel (all operating parts)
Installation Torque	30 lb-ft	Maximum Inlet Pressure Rating	6000 psi
Cracking Pressure	6.9 bar	Function	Standard Check
Flow Direction	2-1 Checked	Flow Rate	45 L/min @ 100 Psi (7 bar) Nominal
Leak Rate	< 3 drops/min @ 6000 Psi (420 bar)	Maximum Flow Rate	80 L/min
