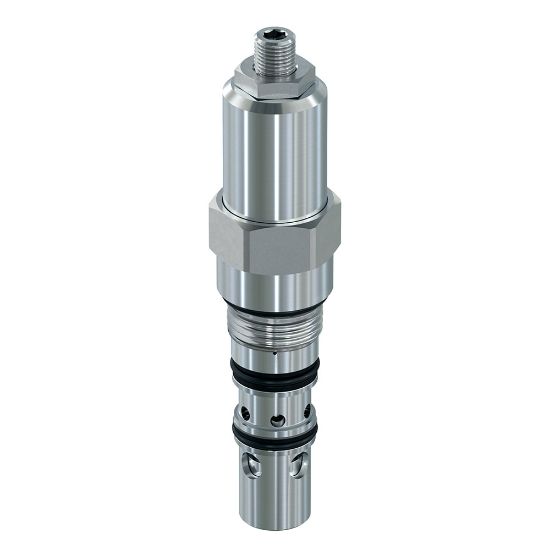

Picture of Standard Pilot Vented Load Control Valves - E6B040TVMK3

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Standard Pilot Vented Load Control Valves - E6B040TVMK3

Parker’s vented load control valves are designed to operate independent of downstream pressure to prevent runaway loads under all dynamic conditions, handling pressures up to 350 bar (5000 psi) and flows up to 113 lpm (30 gpm).
Availability:
Backordered
SKU E6B040TVMK3
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialFluorocarbonPort Sizen/a
Adjustment MechanismTamper ResistantMounting TypeThreaded Cartridge Valve
Pilot Pressure Ratio3:1Holding Pressure3120 PSI, 215 BAR
Maximum Flow Rate15.9 GAL/MIN, 60 L/MINPressure Control Range725-5000 PSI, 50-350 BAR
Flow Rate15.9Maximum Flow Rate15.9
Port Sizen/aSeal MaterialFluorocarbon
Body Materialn/aMaximum Operating Pressure5000
DivisionHydraulic Valve Systems DivisionPilot LocationExternal
Minimum Operating Temperature-15Weight0.73
DivisionMobile Hydraulic Systems Division EuropeAdjustment MechanismTamper Resistant
Maximum Inlet Pressure Rating5000Port Thread Sizen/a
FunctionCounterbalance ValveMaximum Kinematic ViscosityMineral-based or synthetic with lubricating properties at viscosities of 45-2000 SSU (6 to 420 cSt)
Mounting TypeThreaded Cartridge ValvePilot Pressure Ratio3:1
Filter Efficiency RatingISO 4406:1999 Code 18/16/13Operating Temperature-15° to +400°
Cavity Size68-1For Fluid TypeMineral-based or synthetic hydraulic fluids
Valve MaterialAll parts steel. All operating parts hardened steelMaximum Operating Temperature+400
Leak Rate6 @ 1450 PSI (100 BAR)Flow DirectionCylinder port 1, Valve port 2, Pilot port 3
Holding Pressure3120Installation Torque54
Pressure Control Range725-5000Actuation TypePilot Operated, Vented
Pressure Control Sensitivity1335 per turn
