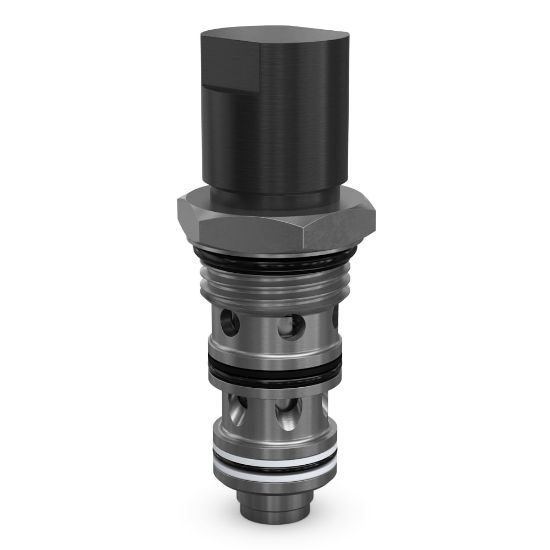

Standard Pilot Vented Load Control Valves - MHC-022-VJSJ-00B

Name: Standard Pilot Vented Load Control Valves - MHC-022-VJSJ-00B
SKU: MHC-022-VJSJ-00B

Parker’s vented load control valves are designed to operate independent of downstream pressure to prevent runaway loads under all dynamic conditions, handling pressures up to 350 bar (5000 psi) and flows up to 113 lpm (30 gpm).

Availability:

Backordered

SKU MHC-022-VJSJ-00B

POR

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Port Size	n/a
Mounting Type	Threaded Cartridge Valve	Pilot Pressure Ratio	10:1
Adjustment Mechanism	Standard (adjustable)	Pressure Control Range	N/A
Holding Pressure	3500 PSI, 240 BAR	Maximum Flow Rate	25 GAL/MIN, 93.75 L/MIN
Seal Material	Nitrile	Port Size	n/a
Body Material	n/a	Minimum Operating Temperature	-30
Maximum Operating Pressure	5000	Division	Hydraulic Valve Systems Division
Division	Hydraulic Systems Division	Pilot Location	External
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Flow Rate	25
Weight	0.88	Maximum Flow Rate	25
Pressure Control Sensitivity	n/a	Maximum Inlet Pressure Rating	5000
Pressure Control Range	n/a	Function	Counterbalance Valve
Mounting Type	Threaded Cartridge Valve	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250	Maximum Operating Temperature	+250
Actuation Type	Pilot Operated, Vented	Leak Rate	5 @ 80% of setting
Pilot Pressure Ratio	10:1	Flow Direction	Cylinder port 2, Valve port 3, Pilot port 1
Adjustment Mechanism	Standard (adjustable)	Cavity Size	CDD-1036
Holding Pressure	3500	Installation Torque	102-108
