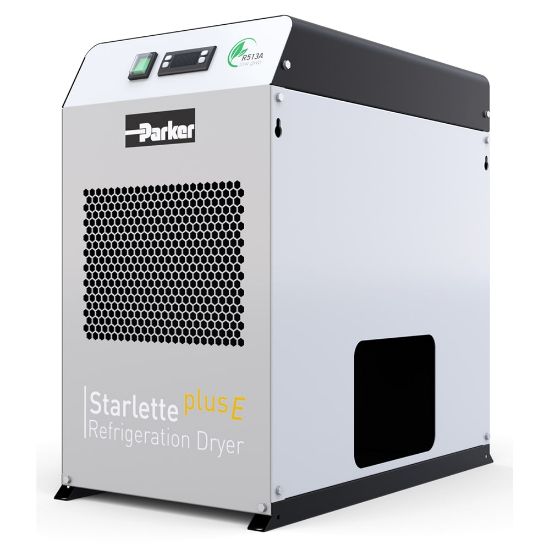

Picture of StarlettePlus-E Small To Medium Flow Compressed Air Refrigeration Dryers - SPS014-A2301DF16FHS

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

StarlettePlus-E Small To Medium Flow Compressed Air Refrigeration Dryers - SPS014-A2301DF16FHS

Effective removal of water vapour (to +3°C pdp) from compressed air at low operating costs. Dual frequency ready, with volume flows up to 600m³/h (50Hz) or 689m³/hr (60Hz) @ 7 barg.
Availability:
Backordered
SKU SPS014-A2301DF16FHS
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Flow Rate84 m³/h @ 7 barg (49 cfm @ 102 psig) 50 HzDrain OptionExternal Float
BrandPARKERTechnologyFiltration
DivisionGas Separation and Filtration Division EMEADivisionGas Separation and Filtration Division EMEA
Port Size3/4 inchIndustryIndustrial Manufacturing Equipment
Connection TypeBSPPWeight77 lb
Operating Temperature5 to 50 °CSpecifications MetPED 2014/68/EU Fluid Group II
ApplicationCompressed Air ApplicationsNoise Level< 75 dBA
Product TypeCompressed Air DryerAmbient Temperature50.0 °C Maximum
Depth550.0 mmRefrigerant TypeR513A (Low GWP Refrigerant)
Pressure Dew PointStandard: 3°C (37°F)<br/>Product StyleRefrigeration
Width13 inchHeight22.8 inch
Flow Rate96.0 m3/hour at 7 barg, 60HzProduct SeriesStarlettePlus-E
Power Consumption0.15 kW (50Hz)Operating Pressure2 to 16 barg
Electrical Requirements230V 1ph 50Hz/60HzIngress Protection RatingIP22 Indoor Use Only
Product resources

Literature and Reference Materials
