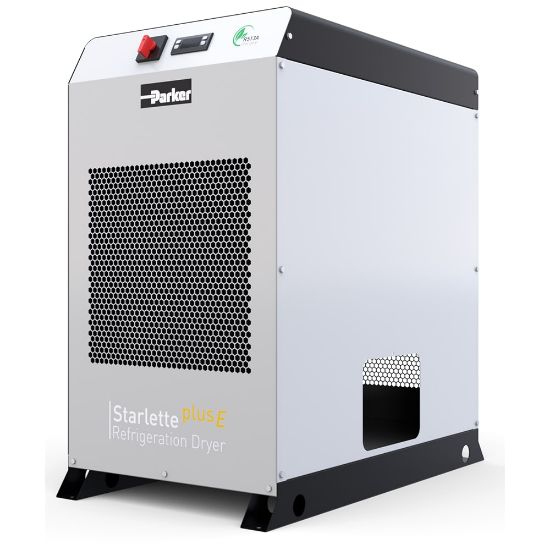

Picture of StarlettePlus-E Small To Medium Flow Compressed Air Refrigeration Dryers - SPS080-A2301DF14EXSES

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

StarlettePlus-E Small To Medium Flow Compressed Air Refrigeration Dryers - SPS080-A2301DF14EXSES

Effective removal of water vapour (to +3°C pdp) from compressed air at low operating costs. Dual frequency ready, with volume flows up to 600m³/h (50Hz) or 689m³/hr (60Hz) @ 7 barg.
Availability:
Backordered
SKU SPS080-A2301DF14EXSES
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Flow Rate480 m³/h @ 7 barg (282 cfm @ 102 psig) 50 HzDrain OptionElectonic Level Sensing & Energy Savings
BrandPARKERTechnologyFiltration
DivisionGas Separation and Filtration Division EMEADivisionGas Separation and Filtration Division EMEA
Port Size1-1/2 inchIndustryIndustrial Manufacturing Equipment
Connection TypeBSPPOperating Temperature5 to 50 °C
Specifications MetPED 2014/68/EU Fluid Group IIApplicationCompressed Air Applications
Noise Level< 75 dBAProduct TypeCompressed Air Dryer
Ambient Temperature122.0 °F MaximumHeight33.1 inch
Weight80 kgRefrigerant TypeR513A (Low GWP Refrigerant)
Pressure Dew PointOptions: 7°C (45°F) or 10°C (50°F)Product StyleRefrigeration
Operating Pressure29 to 203 psigDepth780.0 mm
Width450.0 mmFlow Rate555.0 m3/hour at 7 barg, 60Hz
Product SeriesStarlettePlus-EPower Consumption0.90 kW (60Hz)
Electrical Requirements230V 1ph 50Hz/60HzIngress Protection RatingIP22 Indoor Use Only
