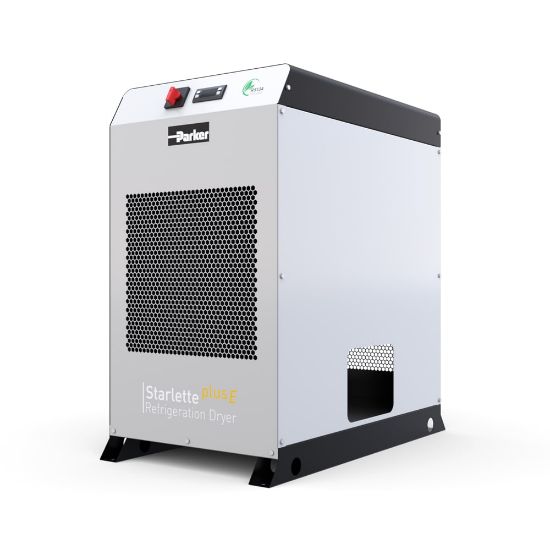

Picture of StarlettePlus-E (SPS) Series Compressed Air Refrigeration Dryers - 60Hz & UL Listed for North America - SPS0175-A23016016TIU

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

StarlettePlus-E (SPS) Series Compressed Air Refrigeration Dryers - 60Hz & UL Listed for North America - SPS0175-A23016016TIU

Refrigerated compressed air dryers effecitve in removing water vapor, down to levels in accorance with ISO8573-1, from compressed air flow rates between 10-250 scfm while maintaining industry leading low operating costs.
Availability:
Backordered
SKU SPS0175-A23016016TIU
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Design Rating100 psig (7 barg) inlet, 100°F (38°C) inlet & 100°F (38°C) ambientCooling MethodAir Cooled Condenser
Flow Rate175 scfm (297.3 m3/h)Electrical Requirements230V / 1Ph / 60Hz
BrandPARKERDivisionIndustrial Gas Filtration and Generation Division
Ingress Protection RatingIP44Width15.7 inch
Electronics TypeETL ListedProduct TypeRefrigeration
Connection TypeNPT-FRefrigerant TypeR-513A
Pressure Dew PointISO 8573-1 Class 5 for WaterOptional AccessoriesDryer Only
Minimum Operating Pressure2.0 bargMaximum Ambient Temperature122.0 °F
Maximum Operating Temperature149.0 °FMinimum Operating Temperature5.0 °C
Depth630.0 mmHeight25.6 inch
Weight55 kgTechnologyNon-Cycling
Port Connection1 1/2 inMaximum Operating Pressure16.0 barg
Product resources

Literature and Reference Materials
