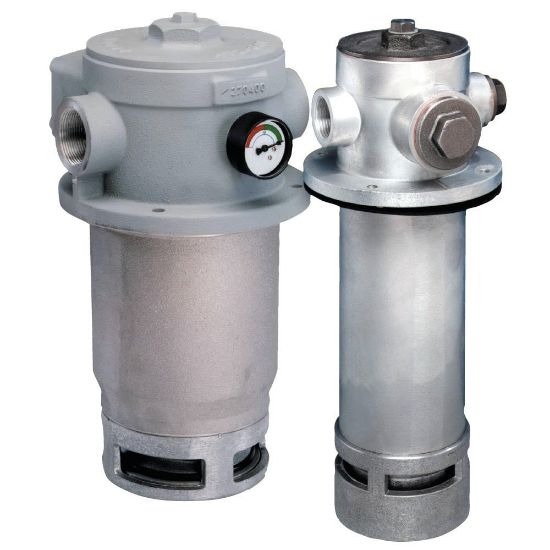

Picture of Tank Mounted Suction Filter - ATZ Series - ATZ110CBV1XG241

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Tank Mounted Suction Filter - ATZ Series - ATZ110CBV1XG241

ATZ Series Suction Filters.
Submersible (under oil level) tank-wall mounted suction line filters containing a valve that closes automatically before changing the element.
Maximum flow 300 l/min.
Availability:
Backordered
SKU ATZ110CBV1XG241
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileMicron Rating10 µm
Filter Element Type10C CelluloseFlow Rate0 to 120 l/min
Options1 x G1½ + 1 x G1 pluggedIndicator TypeElectrical 42V, NO, -0,15 bar
Connection TypeG1½ + 2 x G1DivisionHydraulic & Industrial Process Filtration Division EMEA
Operating Temperature-40 to 100 °CBypass Valve Pressure RatingNo Bypass
Mounting TypeTank MountedHousing MaterialAluminium
Pressure Ratingn/aFlow Rate120 L/min
Port TypeG1½ + 2 x G1
Product resources

Literature and Reference Materials
