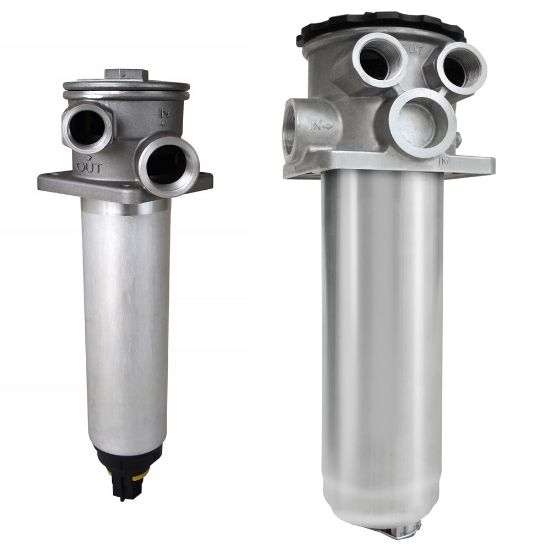

Picture of Tanktop Mounted Suction and Return Filter - SR Series - SRL1210QLBPGG166

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Tanktop Mounted Suction and Return Filter - SR Series - SRL1210QLBPGG166

The SR series filters are capable of feeding filtered oil under positive pressure to the suction side of the boost pump filtering both open and closed loop oil systems through one filter.
Availability:
Backordered
SKU SRL1210QLBPGG166
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Filter Element Type10QL EcoglassIndicator TypeNo indicator, Port plugged R
Bypass Valve Pressure Rating1.7 barFlow Rate0 to 125 l/min
Connection TypeReturn G1", Suction G3/4"OptionsDipstick
BrandPARKERTechnologyFiltration
Seal MaterialNitrileIndustryConstruction
DivisionHydraulic & Industrial Process Filtration Division EMEADivisionHydraulic & Industrial Process Filtration Division EMEA
For Fluid TypeHydraulic OilSpecifications MetDegree of filtration determined by multipass test according to ISO 16889.
Mounting TypeTank MountedHousing MaterialAluminium
Operating Pressure10Indicator Pressure SettingNo Indicator
Micron Rating10ApplicationRoad Rollers
Product TypeHydraulic FiltersProduct StyleTanktop Mounted Suction and Return Filter
Product SeriesSR SeriesOperating Temperature-30 to 110
