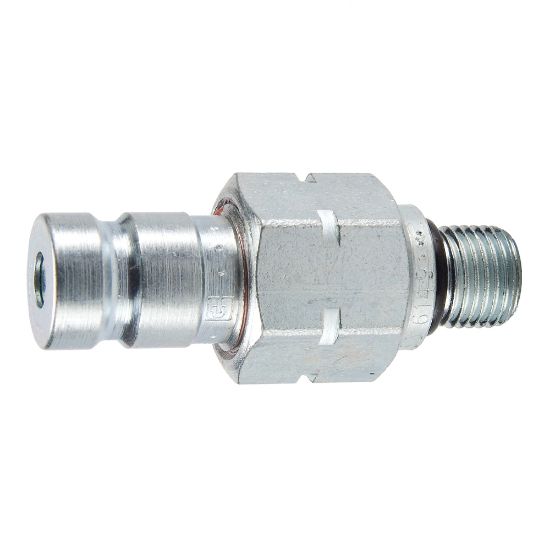

Picture of Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series - PD3127

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series - PD3127

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.
Availability:
Backordered
SKU PD3127
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Tube Size (inch)naConnection Thread Size (inch)na
Connection TypeMale MetricCoupling HalfMale Nipple
Body Size1/8 inchSpecifications MetSAE J1502 / ISO 15171-1
DivisionQuick Coupling DivisionSeal MaterialNitrile
Body MaterialSteelMaximum Operating Temperature250 °F
Minimum Operating Temperature-40 °FHex Size0.94 inch
ApplicationDiagnosticFlow Rate0.8 Gal/min
Valve TypeNon-spillPlating TypeZinc with clear trivalent chromate
Maximum Operating Pressure6000 psiProduct TypePush to connect
