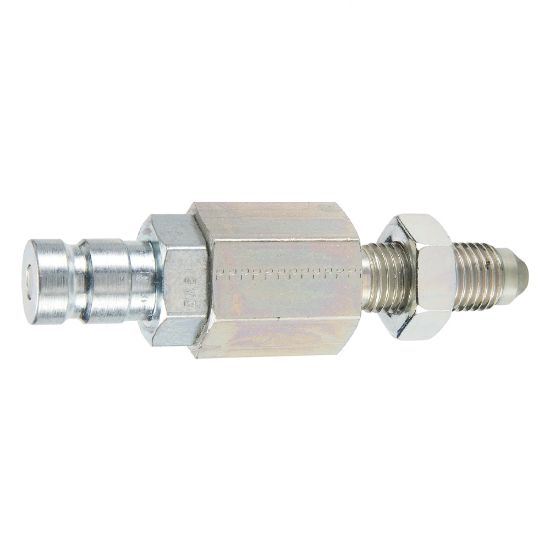

Picture of Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series - PD355

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series - PD355

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.
Availability:
Backordered
SKU PD355
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection TypeMale bulkhead Triple-LokConnection Thread Size (inch)1/2 - 20 UNF
Coupling HalfMale NippleTube Size (inch)5/16
Specifications MetSAE J1502 / ISO 15171-1Body Size1/8 inch
Seal MaterialNitrileProduct TypePush to connect
Maximum Operating Pressure6000 psiHex Size0.81 inch
Body MaterialSteelValve TypeNon-spill
Plating TypeZinc with clear trivalent chromateDivisionQuick Coupling Division
ApplicationDiagnosticFlow Rate0.8 Gal/min
Maximum Operating Temperature250 °FMinimum Operating Temperature-40 °F
