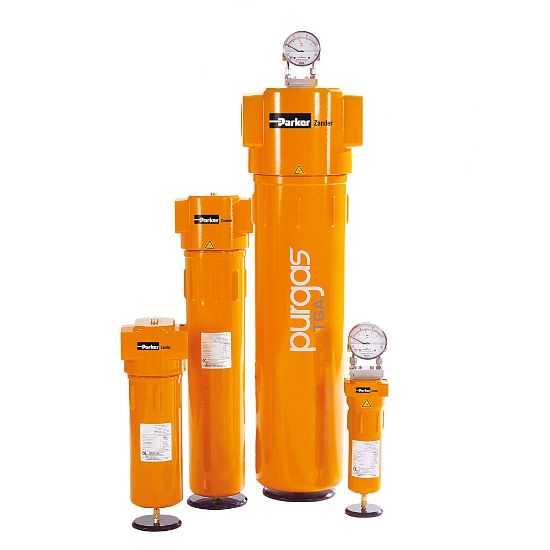

Picture of TGA Series Filters for Technical and Industrial Gases - TGA102/25C-B/A

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

TGA Series Filters for Technical and Industrial Gases - TGA102/25C-B/A

Parker TGA series filters for filtration of technical and industrial gases in applications up to 50 bar(g).
Availability:
Backordered
SKU TGA102/25C-B/A
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
CertificatesATEXPort Connection (inch)1/4"
Filter TypeGeneral purpose filter with TA30 element sizeMaximum Operating Pressure (barg)25
Filter Efficiency Rating99.9999 %Connection TypeBSP-P DIN ISO 228
Maximum Operating Pressure362.59 psigMaterials of ConstructionHousing: Aluminium, Seals: FEPM
BrandZanderWeight1.65 lb
DivisionGas Separation and Filtration Division EMEACompatible ElementTA30CE
ApplicationFiltration of technical and industrial gasesHeight249 mm
Maximum Flow Raten/a Contact usMicron Rating1 μm
Minimum Operating Temperature1.5 °CDrain Port Size1/4 inch
Maximum Operating Temperature80 °CWidth120 mm
