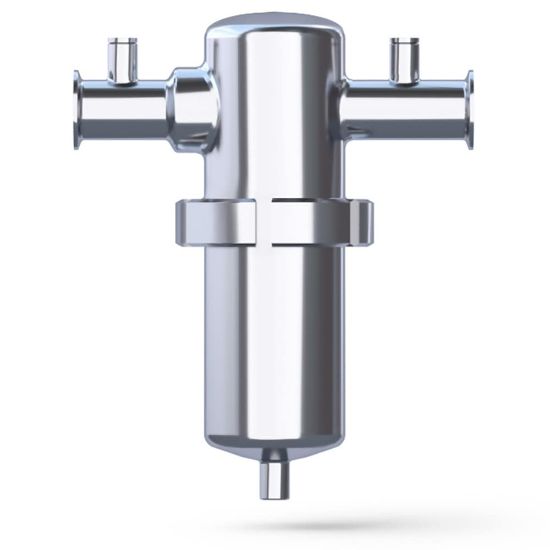

Picture of TGE ATEX Approved Stainless Steel Filters for Technical and Industrial Gases - Clamp Connection - TGE314/16C-C/A

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

TGE ATEX Approved Stainless Steel Filters for Technical and Industrial Gases - Clamp Connection - TGE314/16C-C/A

ATEX approved stainless steel filters for filtration of technical and industrial gases in applications up to 16 bar(g).
Availability:
Backordered
SKU TGE314/16C-C/A
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection TypeClamp ASME BPE 1½"Filter TypeCoalescing Prefilter
Micron RatingDown to 1 micronFlow Rate500 m³/h @ 7 barg (294 cfm @ 102 psig)
Product SeriesTGE ATEX SeriesFilter Efficiency Rating99.9999 %
Height9.8 inchApplicationFiltration of Compressed Natural Gas
Width140.0 mmDivisionGas Separation and Filtration Division EMEA
BrandPARKERFilter TypeStainless Steel
TechnologyFiltrationResidual Oil Content≤ 0.5 mg/m³
Compatible ElementTE13CProduct TypeNatural Gas Filter
DivisionGas Separation and Filtration Division EMEAOperating Pressure232.0 psig Maximum
