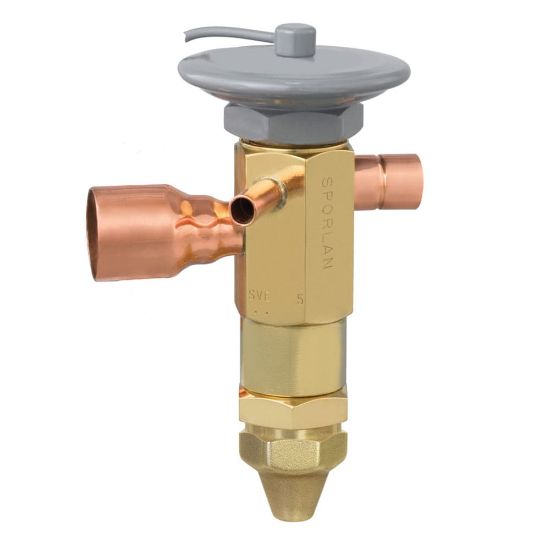

Thermostatic Expansion Valve - Sporlan - Type S - 128665

Name: Thermostatic Expansion Valve - Sporlan - Type S - 128665
SKU: 128665

Sporlan Type S TEV's are designed for use on Air Conditioning and Refrigeration units. They regulate refrigerant flow by maintaining a nearly constant superheat at the evaporator outlet. The R/ER Series valves are functional replacements.

Availability:

Backordered

SKU 128665

POR

Qty:

Products specifications

Attribute name	Attribute value
Core Material	Tin-Plated Steel	Micron Rating	50
End Cap Material	N/A	End Cap Configuration	DOE - Double Open End
Industry	Oil & Gas and Industrial	Packaging	Standard
Seal Material	N/A	Core Cover Material	N/A
Nominal Outside Diameter	2.4375"	Maximum Operating Temperature	250 F
Cartridge Length	30.1875"	Filter Material	Rayon (FDA)
Equalizer Method	Externally Equalized	Thermostatic Charge	Z
Refrigerant Type	R-404A	Inlet Connection Size (inch)	3/8" ODF
Application	Low Temp Refrigeration	Model Number	ELMT E11R30
Capillary Length (m)	1.524 m	Nominal Capacity (ton)	3 ton
Capillary Length (inch)	5'	Outlet Connection Size (inch)	5/8" ODF
Brand	PARKER	Division	Industrial Process Filtration Division
Technology	Filtration	Flow Direction	Outside-to-inside
Quantity per Box	20	Product Series	HFT
Filter Construction	Wound String	Nominal Inside Diameter	1"
Maximum Pressure Differential	60 PSID	Changeout Pressure Differential	30 PSID
Thermostatic Charge	Z	Maximum Operating Pressure	450 psi
Equalizer Connection Type	Externally Equalized	Division	Fluid and Climate Controls Europe
Application	Low Temp Refrigeration	Model Number	SSSE-3-Z 3X5 ODF 5'
Product Type	S- Valve	Pressure Drop	100 psi (nom)
Strainer Type	12 Mesh Permanent	Nominal Capacity	3 ton
Refrigerant Type	R-404A, R-507A	Liquid Temperature	37.8 °C (nom)
Filter Element Type	83	Capillary Tube Length	1.524 m
Inlet Connection Size	3/8" ODF inch	Evaporator Temperature	40 °F (nom)
Outlet Connection Size	5/8" ODF inch
