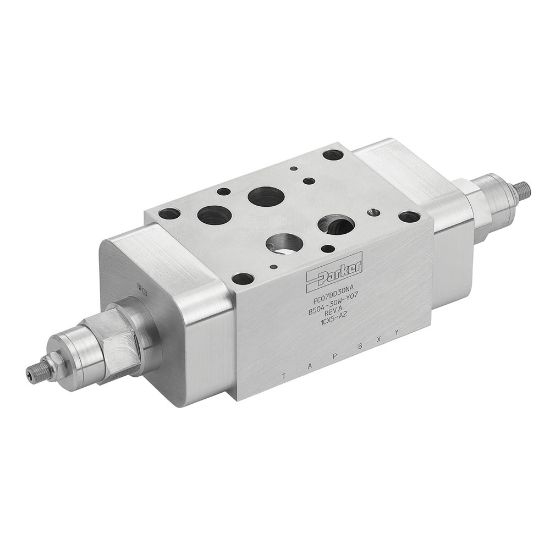

Picture of Throttle Sandwich Valve with Check - FC, FD Series - FD05DD30ND

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Throttle Sandwich Valve with Check - FC, FD Series - FD05DD30ND

Parker’s FC, FD series throttle check valves are designed for maximum flow rates.
Availability:
Backordered
SKU FD05DD30ND
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Operating Pressure5000 PSISizeNFPA D05; CETOP 5; NG10
Flow MeterMeter-InMounting TypeSubplate
Seal MaterialNitrileActuation TypeHydrau;ic Pressure
Maximum Operating Pressure5000Product StyleThrottle Valve with Check
MediaOilCracking Pressure3
Weight5.7Maximum Operating Temperature+122
Maximum Flow Rate25DivisionHydraulic Valve Systems Division
Port ConnectionA and B controlAllowable Circuit Leakage<5 DPM
Body MaterialDuctile IronFilter Efficiency RatingISO 4406 (1999); 18/16/13 (meet NAS 1638:7)
Minimum Operating Temperature-4
