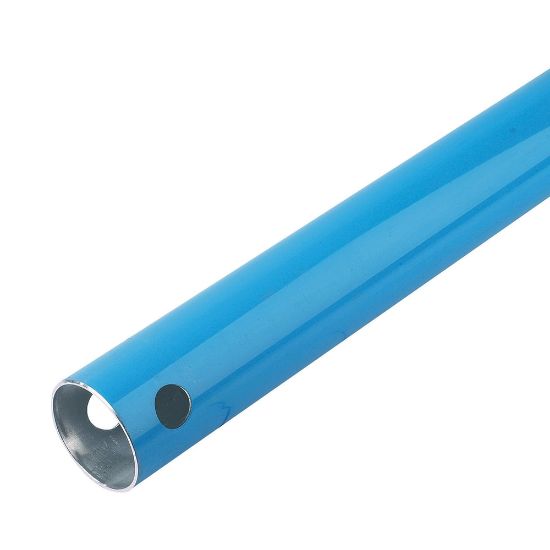

Transair® Aluminum Pipe - 1003A50 04

Name: Transair® Aluminum Pipe - 1003A50 04
SKU: 1003A50 04

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:

Backordered

SKU 1003A50 04

POR

Qty:

Products specifications

Attribute name	Attribute value
Length (m)	3	Length (ft)	10
Pipe O.D. (mm)	50.8	Pipe O.D. (inch)	2
Color	Blue	Color	Blue
Weight	2,142 kg	Application	Compressed Air
Specifications Met	EN 573.3	Division	Low Pressure Connectors Europe Division
Vacuum Pressure Rating	1 mbar	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Maximum Operating Temperature	85 °C	Minimum Operating Temperature	-20 °C
Product Type	Rigid Aluminum Pipe	Brand	PARKER
Industry	General Industrial	Technology	Fluid & Gas Handling
Outside Diameter	50 mm	Shape	Straight
Length	10 ft	Division	Low Pressure Connectors Europe Division
Assembly Time	0.05 Hours	Body Material	Treated Aluminum
Configuration	Pipe to Pipe	Quantity per Box	5
Size	50.8 mm	For Fluid Type	Air
Connection 1 Type	Pipe

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)
