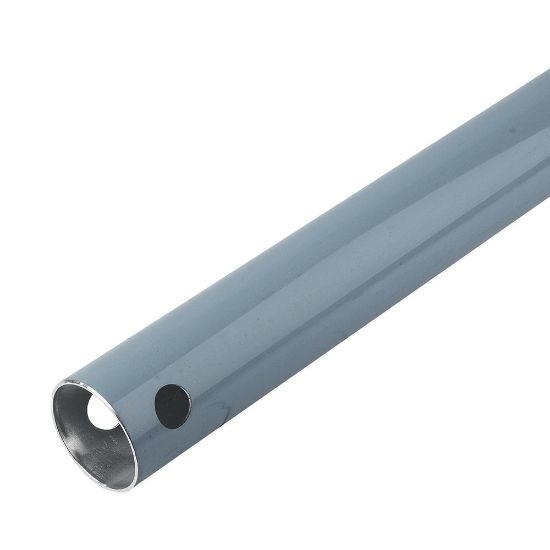

Transair® Aluminum Pipe - 1003A50 06

Name: Transair® Aluminum Pipe - 1003A50 06
SKU: 1003A50 06

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:

Backordered

SKU 1003A50 06

POR

Qty:

Products specifications

Attribute name	Attribute value
Length (m)	3	Length (ft)	10
Pipe O.D. (mm)	50.8	Pipe O.D. (inch)	2
Color	Gray	Color	Gray
Weight	4,722 lb	Application	Vacuum
Specifications Met	ASME B31.1 - 31.9	Division	Low Pressure Connectors Europe Division
Vacuum Pressure Rating	0.03 inch-Hg	Maximum Operating Pressure	232 psi
Maximum Operating Temperature	185 °F	Minimum Operating Temperature	-20 °C
Product Type	Rigid Aluminum Pipe	Brand	Transair
Industry	General Industrial	Technology	Pneumatics
Outside Diameter	2 inch	Shape	Straight
Length	10 ft	Division	Low Pressure Connectors Europe Division
Assembly Time	0.05 Hours	Body Material	Treated Aluminum
Configuration	Pipe to Pipe	Quantity per Box	5
Size	2 inch	For Fluid Type	Air
Connection 1 Type	Pipe
