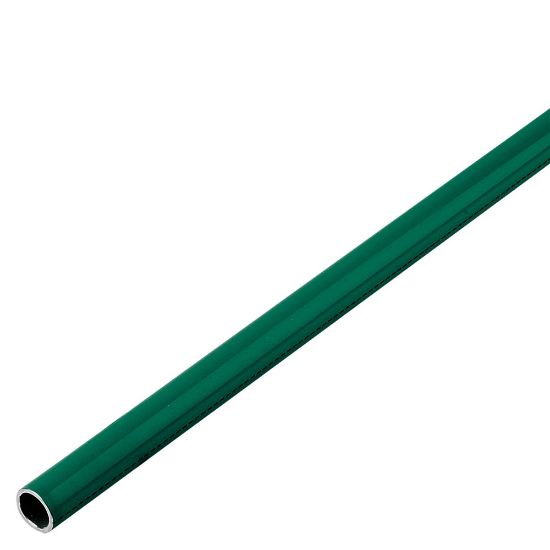

Transair® Aluminum Pipe - 1004A17 02

Name: Transair® Aluminum Pipe - 1004A17 02
SKU: 1004A17 02

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:

Backordered

SKU 1004A17 02

POR

Qty:

Products specifications

Attribute name	Attribute value
Length (m)	4,5	Length (ft)	15
Pipe O.D. (mm)	16.5	Pipe O.D. (inch)	1/2
Color	Green	Color	Green
Weight	0,990 kg	Application	Compressed Air
Specifications Met	EN 755.8	Division	Low Pressure Connectors Europe Division
Vacuum Pressure Rating	0.03 inch-Hg	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Maximum Operating Temperature	185 °F	Minimum Operating Temperature	-4 °F
Product Type	Rigid Aluminum Pipe	Brand	PARKER
Industry	General Industrial	Technology	Pneumatics
Outside Diameter	16.5 mm	Shape	Straight
Length	4,5 m	Division	Low Pressure Connectors Europe Division
Assembly Time	0.05 Hours	Body Material	Treated Aluminum
Configuration	Pipe to Pipe	Quantity per Box	10
Size	16.5 mm	For Fluid Type	Industrial Gas
Connection 1 Type	Pipe
