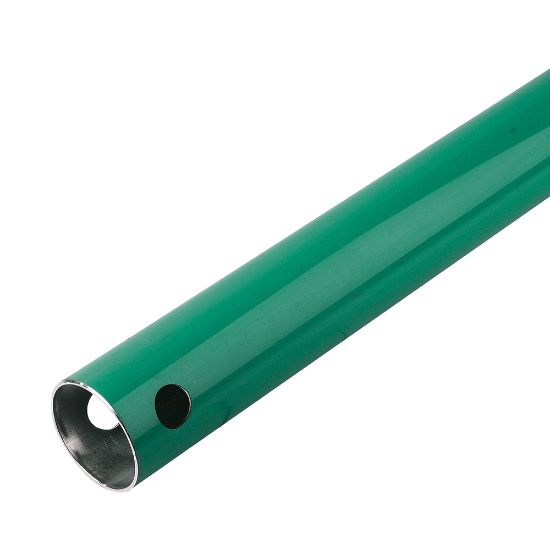

Transair® Aluminum Pipe - 1006A50 02

Name: Transair® Aluminum Pipe - 1006A50 02
SKU: 1006A50 02

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:

Backordered

SKU 1006A50 02

POR

Qty:

Products specifications

Attribute name	Attribute value
Length (m)	6	Length (ft)	20
Pipe O.D. (mm)	50.8	Pipe O.D. (inch)	2
Color	Green	Color	Green
Weight	9,523 lb	Application	Industrial Gas
Specifications Met	EN 755.2	Division	Low Pressure Connectors Europe Division
Vacuum Pressure Rating	1 mbar	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Maximum Operating Temperature	85 °C	Minimum Operating Temperature	-20 °C
Product Type	Rigid Aluminum Pipe	Brand	Transair
Industry	General Industrial	Technology	Pneumatics
Outside Diameter	50 mm	Shape	Straight
Length	6 m	Division	Low Pressure Connectors Europe Division
Assembly Time	0.05 Hours	Body Material	Treated Aluminum
Configuration	Pipe to Pipe	Quantity per Box	5
Size	2 inch	For Fluid Type	Industrial Gas
Connection 1 Type	Pipe
