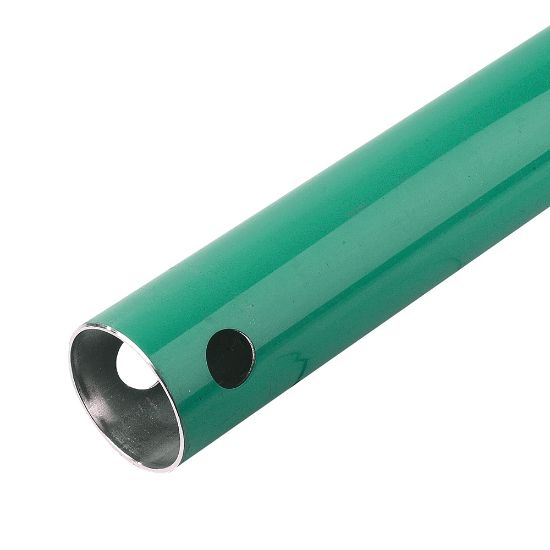

Transair® Aluminum Pipe - 1006A63 02

Name: Transair® Aluminum Pipe - 1006A63 02
SKU: 1006A63 02

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:

Backordered

SKU 1006A63 02

POR

Qty:

Products specifications

Attribute name	Attribute value
Length (m)	6	Length (ft)	20
Pipe O.D. (mm)	63	Pipe O.D. (inch)	2-1/2
Color	Green	Color	Green
Weight	13,613 lb	Application	Inert Gases
Specifications Met	EN 755.2	Division	Low Pressure Connectors Europe Division
Vacuum Pressure Rating	1 mbar	Maximum Operating Pressure	232 psi
Maximum Operating Temperature	85 °C	Minimum Operating Temperature	-20 °C
Product Type	Rigid Aluminum Pipe	Brand	PARKER
Industry	General Industrial	Technology	Fluid & Gas Handling
Outside Diameter	63 mm	Shape	Straight
Length	20 ft	Division	Low Pressure Connectors Europe Division
Assembly Time	0.05 Hours	Body Material	Treated Aluminum
Configuration	Pipe to Pipe	Quantity per Box	4
Size	63 mm	For Fluid Type	Industrial Gas
Connection 1 Type	Pipe
