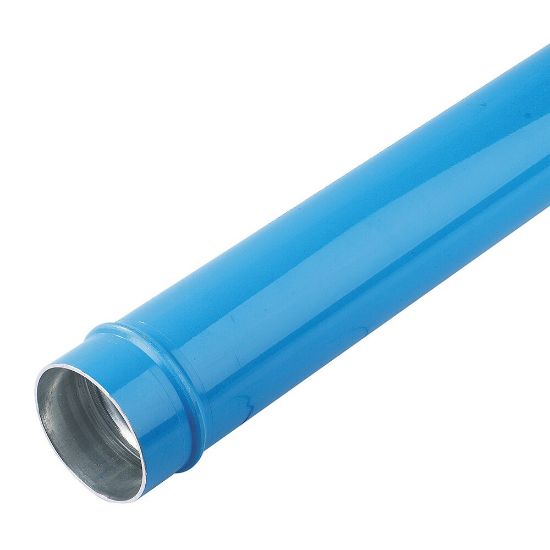

Transair® Aluminum Pipe - TA06 L1 04

Name: Transair® Aluminum Pipe - TA06 L1 04
SKU: TA06 L1 04

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:

Backordered

SKU TA06 L1 04

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	76.3	Length (m)	6
Pipe O.D. (inch)	3	Length (ft)	20
Color	Blue	Technology	Fluid & Gas Handling
For Fluid Type	Industrial Gas	Length	6 m
Outside Diameter	3 inch	Size	76 mm
Application	Inert Gases	Configuration	Pipe to Pipe
Minimum Operating Temperature	-20 °C	Color	Blue
Weight	7,620 kg	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Division	Low Pressure Connectors Europe Division	Shape	Straight
Product Type	Rigid Aluminum Pipe	Body Material	Treated Aluminum
Industry	General Industrial	Assembly Time	0.15 Hours
Vacuum Pressure Rating	0.03 inch-Hg	Maximum Operating Temperature	85 °C
Specifications Met	EN 755.2	Connection 1 Type	Pipe
Quantity per Box	1	Brand	PARKER
Division	Low Pressure Connectors Europe Division
