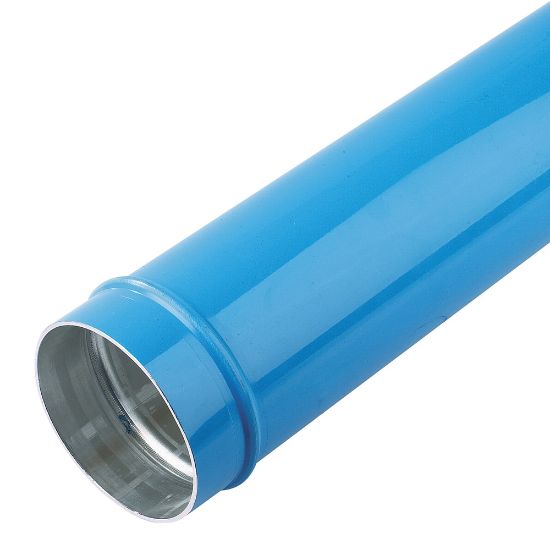

Transair® Aluminum Pipe - TA06 L3 04

Name: Transair® Aluminum Pipe - TA06 L3 04
SKU: TA06 L3 04

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:

Backordered

SKU TA06 L3 04

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (inch)	4	Color	Blue
Length (m)	6	Pipe O.D. (mm)	101.8
Length (ft)	20	Outside Diameter	4 inch
Size	101.8 mm	Brand	PARKER
Quantity per Box	1	Division	Low Pressure Connectors Europe Division
Vacuum Pressure Rating	1 mbar	Technology	Fluid & Gas Handling
Configuration	Pipe to Pipe	For Fluid Type	Industrial Gas
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Color	Blue
Specifications Met	EN 573.3	Division	Low Pressure Connectors Europe Division
Body Material	Treated Aluminum	Length	20 ft
Product Type	Rigid Aluminum Pipe	Shape	Straight
Weight	11,600 kg	Assembly Time	0.15 Hours
Industry	General Industrial	Application	Vacuum
Maximum Operating Temperature	85 °C	Connection 1 Type	Pipe
Minimum Operating Temperature	-4 °F
