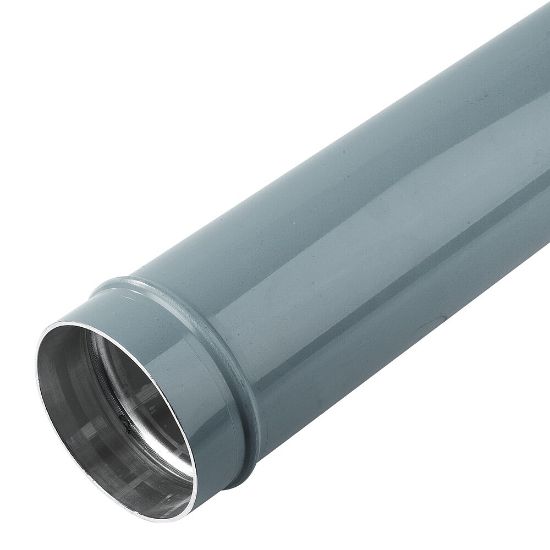

Transair® Aluminum Pipe - TA06 L3 06

Name: Transair® Aluminum Pipe - TA06 L3 06
SKU: TA06 L3 06

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:

Backordered

SKU TA06 L3 06

POR

Qty:

Products specifications

Attribute name	Attribute value
Color	Gray	Length (m)	6
Pipe O.D. (mm)	101.8	Length (ft)	20
Pipe O.D. (inch)	4	Division	Low Pressure Connectors Europe Division
For Fluid Type	Air	Body Material	Treated Aluminum
Shape	Straight	Product Type	Rigid Aluminum Pipe
Length	20 ft	Color	Gray
Industry	General Industrial	Minimum Operating Temperature	-4 °F
Assembly Time	0.15 Hours	Connection 1 Type	Pipe
Quantity per Box	1	Maximum Operating Temperature	85 °C
Size	101.8 mm	Specifications Met	EN 755.2
Weight	11,6 kg	Division	Low Pressure Connectors Europe Division
Vacuum Pressure Rating	1 mbar	Application	Industrial Gas
Technology	Pneumatics	Brand	Transair
Outside Diameter	100 mm	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Configuration	Pipe to Pipe
