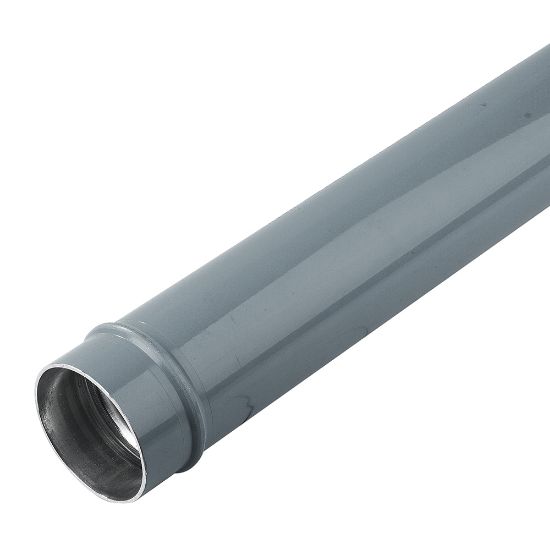

Transair® Aluminum Pipe - TA16 L1 06

Name: Transair® Aluminum Pipe - TA16 L1 06
SKU: TA16 L1 06

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:

Backordered

SKU TA16 L1 06

POR

Qty:

Products specifications

Attribute name	Attribute value
Length (m)	6	Pipe O.D. (inch)	3
Length (ft)	20	Pipe O.D. (mm)	76.3
Color	Gray	Minimum Operating Temperature	-20 °C
Body Material	Treated Aluminum	Size	76.3 mm
Shape	Straight	Product Type	Rigid Aluminum Pipe
Division	Fluid System Connectors Division	Length	20 ft
Industry	General Industrial	Color	Gray
Assembly Time	0.15 Hours	Vacuum Pressure Rating	0.03 inch-Hg
Weight	16,980 lb	Application	Vacuum
Maximum Operating Temperature	85 °C	Connection 1 Type	Pipe
Specifications Met	EN 755.2	Brand	PARKER
Maximum Operating Pressure	232 psi	Quantity per Box	1
Technology	Fluid & Gas Handling	Configuration	Pipe to Pipe
For Fluid Type	Industrial Gas	Outside Diameter	76 mm
Division	Fluid System Connectors Division
