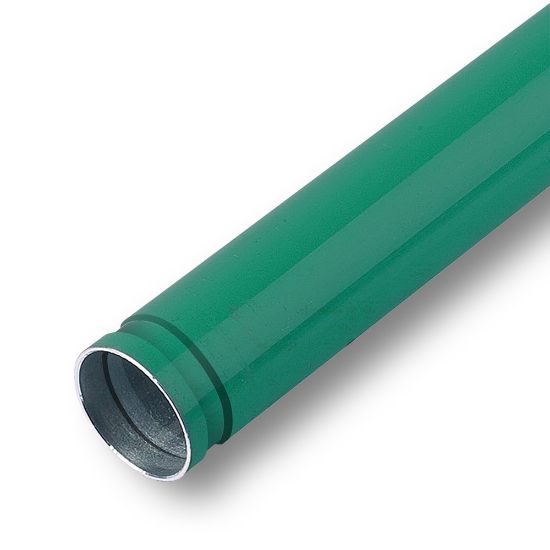

Transair® Aluminum Pipe - TA16 L12 02

Name: Transair® Aluminum Pipe - TA16 L12 02
SKU: TA16 L12 02

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:

Backordered

SKU TA16 L12 02

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (inch)	8	Pipe O.D. (mm)	220
Length (m)	6	Length (ft)	20
Color	Green	Connection 1 Type	Pipe
Quantity per Box	1	Size	8 inch
Vacuum Pressure Rating	0.38 inch-Hg	Application	Vacuum
Brand	PARKER	Color	Green
Weight	42,329 kg	Technology	Pneumatics
Specifications Met	QUALICOAT	Configuration	Pipe to Pipe
Length	6 m	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	185 °F	Division	Fluid System Connectors Division
Assembly Time	0.2 Hours	For Fluid Type	Air
Body Material	Treated Aluminum	Outside Diameter	220 mm
Shape	Straight	Product Type	Rigid Aluminum Pipe
Industry	General Industrial	Maximum Operating Pressure	150 psi
Minimum Operating Temperature	-4 °F
