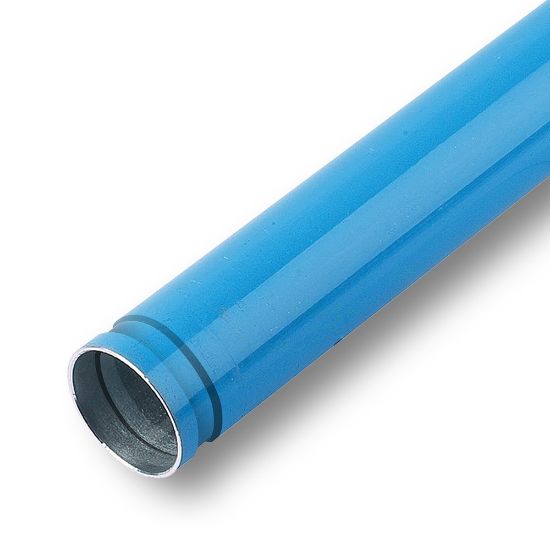

Transair® Aluminum Pipe - TA16 L12 04

Name: Transair® Aluminum Pipe - TA16 L12 04
SKU: TA16 L12 04

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:

Backordered

SKU TA16 L12 04

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	220	Length (m)	6
Length (ft)	20	Color	Blue
Pipe O.D. (inch)	8	Size	219.5 mm
Division	Fluid System Connectors Division	Color	Blue
Division	Low Pressure Connectors Europe Division	Length	20 ft
Product Type	Rigid Aluminum Pipe	Assembly Time	0.2 Hours
Body Material	Treated Aluminum	Shape	Straight
Industry	General Industrial	Minimum Operating Temperature	-4 °F
Connection 1 Type	Pipe	Maximum Operating Temperature	85 °C
Vacuum Pressure Rating	0.38 inch-Hg	Maximum Operating Pressure	10 bar 150 PSI (-4° to +140°F)/10 bar (-20°C to 60°C) For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html
Quantity per Box	1	Outside Diameter	8 inch
Technology	Pneumatics	Weight	42,329 kg
Application	Inert Gases	Configuration	Pipe to Pipe
For Fluid Type	Industrial Gas	Brand	Transair
Specifications Met	QUALICOAT
