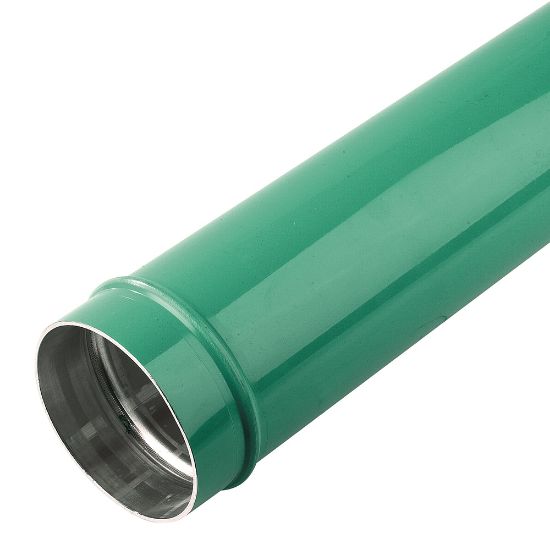

Transair® Aluminum Pipe - TA16 L3 02

Name: Transair® Aluminum Pipe - TA16 L3 02
SKU: TA16 L3 02

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:

Backordered

SKU TA16 L3 02

POR

Qty:

Products specifications

Attribute name	Attribute value
Length (m)	6	Pipe O.D. (mm)	101.8
Length (ft)	20	Color	Green
Pipe O.D. (inch)	4	Application	Inert Gases
Outside Diameter	100 mm	Technology	Pneumatics
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Configuration	Pipe to Pipe
Weight	12,559 kg	Division	Low Pressure Connectors Europe Division
Division	Fluid System Connectors Division	For Fluid Type	Air
Product Type	Rigid Aluminum Pipe	Shape	Straight
Specifications Met	EN 573.3	Body Material	Treated Aluminum
Size	4 inch	Length	20 ft
Industry	General Industrial	Assembly Time	0.15 Hours
Vacuum Pressure Rating	0.03 inch-Hg	Minimum Operating Temperature	-4 °F
Connection 1 Type	Pipe	Brand	PARKER
Maximum Operating Temperature	85 °C	Quantity per Box	1
Color	Green
