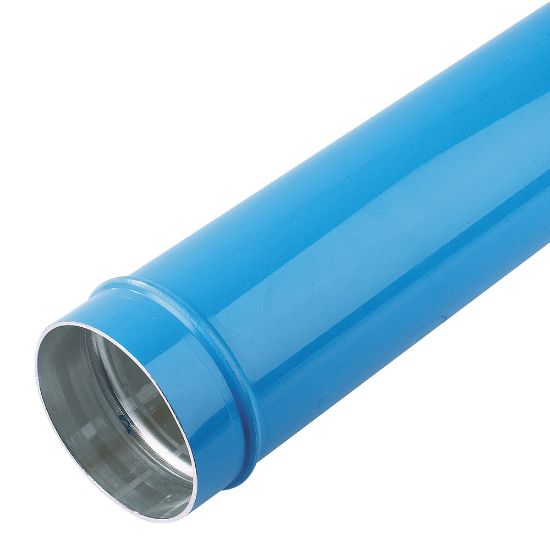

Transair® Aluminum Pipe - TA16 L8 04

Name: Transair® Aluminum Pipe - TA16 L8 04
SKU: TA16 L8 04

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:

Backordered

SKU TA16 L8 04

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	168.3	Color	Blue
Pipe O.D. (inch)	6	Length (m)	6
Length (ft)	20	Maximum Operating Pressure	13 bar 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html
Connection 1 Type	Pipe	Weight	64,840 lb
Size	6 inch	Quantity per Box	1
Technology	Pneumatics	Configuration	Pipe to Pipe
Length	6 m	Application	Inert Gases
Brand	Transair	Specifications Met	QUALICOAT
Division	Fluid System Connectors Division	Color	Blue
Outside Diameter	6 inch	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	185 °F	For Fluid Type	Air
Product Type	Rigid Aluminum Pipe	Body Material	Treated Aluminum
Shape	Straight	Assembly Time	0.15 Hours
Vacuum Pressure Rating	0.03 inch-Hg	Industry	General Industrial
Minimum Operating Temperature	-4 °F
