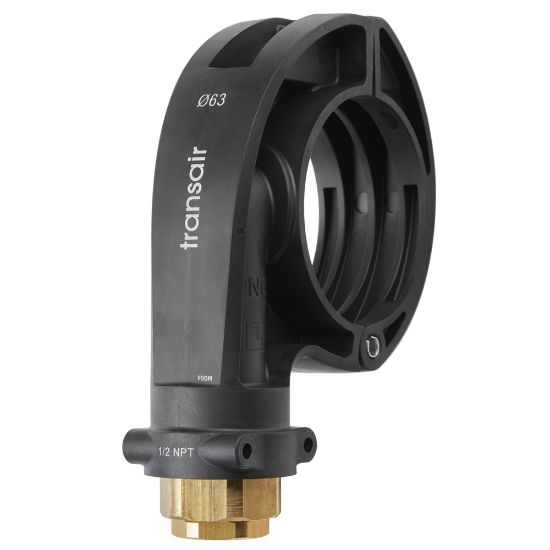

Transair® Drop Brackets for Aluminum Pipe - 6661 63 21

Name: Transair® Drop Brackets for Aluminum Pipe - 6661 63 21
SKU: 6661 63 21

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:

Backordered

SKU 6661 63 21

POR

Qty:

Products specifications

Attribute name	Attribute value
Connection 2 Size	1/2"	Connection 2 Type	Female Threaded BSP Quick Assembly Bracket
Body Material	Technical Polymer	Connection 1 Size	2-1/2" (63 mm)
Brand	Transair	Division	Low Pressure Connectors Europe Division
Product Type	Compressed Air Piping	Minimum Operating Temperature	-20 °C
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	85 °C
Industry	General Industrial	Application	Compressed Air
Specifications Met	ISO 8573 (Air Quality)	Vacuum Pressure Rating	0.03 inch-Hg
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Technology	Pneumatics
Assembly Time	0.05 Hours	Quantity per Box	5
Connection 1 Type	Pipe	Connection 2 Type	BSPP
Weight	0.23 kg	Body Material	Technical Polymer
Configuration	Pipe to Port	Connection 1 Size	63 mm
Shape	Swan Neck	Product Style	Quick Assembly Bracket
For Fluid Type	Industrial Gas Compressed Air, Inert Gas, Vacuum	Connection 2 Size	G 1/2
Assembly	Drop	Silicone Free	Yes
