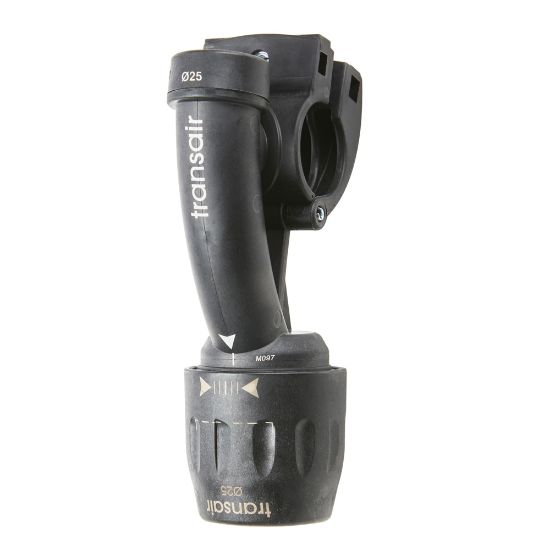

Transair® Drop Brackets for Aluminum Pipe - 6662 25 00

Name: Transair® Drop Brackets for Aluminum Pipe - 6662 25 00
SKU: 6662 25 00

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:

Backordered

SKU 6662 25 00

POR

Qty:

Products specifications

Attribute name	Attribute value
Connection 2 Type	Quick Assembly Bracket	Body Material	Technical Polymer
Connection 1 Size	1" (25 mm)	Connection 2 Size	1" (25 mm)
Brand	PARKER	Quantity per Box	10
Product Type	Compressed Air Piping	Minimum Operating Temperature	-4 °F
Division	Low Pressure Connectors Europe Division	Division	Fluid System Connectors Division
Industry	General Industrial	Application	In Plant Pneumatic
Specifications Met	ASME B31.1 - 31.9	Maximum Operating Temperature	185 °F
Technology	Pneumatics	Configuration	Pipe to Pipe
Connection 1 Type	Pipe	Connection 2 Type	Pipe
Body Material	Technical Polymer	Connection 1 Size	25 mm
Connection 2 Size	25 mm	Shape	Swan Neck
Weight	0.124 lb	Assembly Time	0.07 Hours
Product Style	Quick Assembly Bracket	For Fluid Type	Industrial Gas Compressed Air, Inert Gas, Vacuum
Vacuum Pressure Rating	0.03 inch-Hg 99,9% (absolute pressure)	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) for all diameters 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) for all diameters For Canada, Please refer to https://www.par
Assembly	Drop	Silicone Free	Yes
