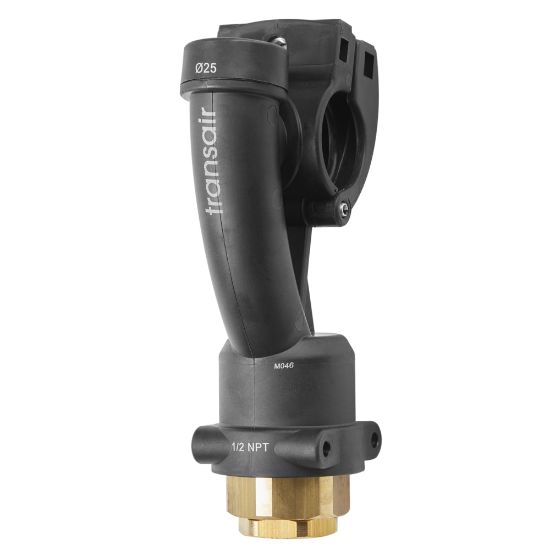

Transair® Drop Brackets for Aluminum Pipe - 6663 40 22

Name: Transair® Drop Brackets for Aluminum Pipe - 6663 40 22
SKU: 6663 40 22

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:

Backordered

SKU 6663 40 22

POR

Qty:

Products specifications

Attribute name	Attribute value
Connection 2 Size	1/2"	Connection 2 Type	Female Threaded NPT Quick Assembly Bracket
Body Material	Technical Polymer	Connection 1 Size	1-1/2" (40 mm)
Brand	PARKER	Quantity per Box	10
Division	Low Pressure Connectors Europe Division	Product Type	Compressed Air Piping
Division	Fluid System Connectors Division	Minimum Operating Temperature	-20 °C
Maximum Operating Temperature	85 °C	Industry	General Industrial
Technology	Fluid & Gas Handling	Application	Industrial Gas
Specifications Met	ISO 8573 (Air Quality)	Maximum Operating Pressure	232 psi
Assembly Time	0.05 Hours	For Fluid Type	Industrial Gas
Connection 1 Type	Pipe	Connection 2 Type	NPT
Connection 2 Size	1/2 inch	Body Material	Technical Polymer
Connection 1 Size	40 mm	Configuration	Pipe to Port
Shape	Swan Neck	Weight	0,34 kg
Product Style	Quick Assembly Bracket	Vacuum Pressure Rating	0.03 inch-Hg 99,9% (absolute pressure)
Assembly	Drop	Silicone Free	Yes
