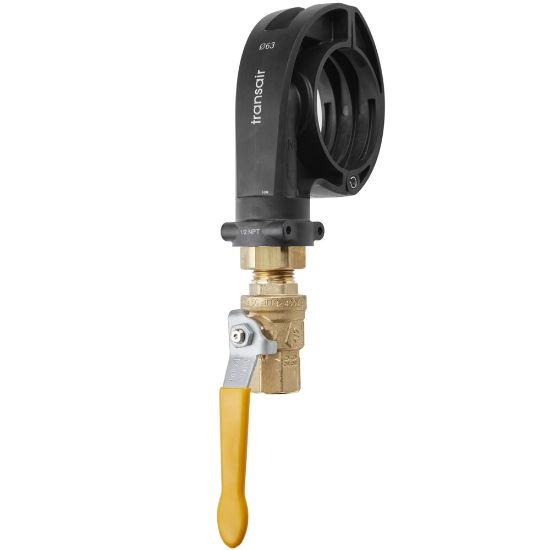

Transair® Drop Brackets for Aluminum Pipe - 6668 63 28

Name: Transair® Drop Brackets for Aluminum Pipe - 6668 63 28
SKU: 6668 63 28

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:

Backordered

SKU 6668 63 28

POR

Qty:

Products specifications

Attribute name	Attribute value
Connection 2 Size	3/4"	Connection 2 Type	Quick Assembly Bracket w/ Ball Valve
Body Material	Technical Polymer	Connection 1 Size	2-1/2" (63 mm)
Brand	Transair	Product Type	Compressed Air Piping
Minimum Operating Temperature	-20 °C	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	85 °C	Division	Fluid System Connectors Division
Industry	General Industrial	Application	Inert Gases
Specifications Met	CE 2014/68/EU	Maximum Operating Pressure	232 psi
Technology	Pneumatics	Assembly Time	0.05 Hours
Connection 1 Type	Pipe	Connection 2 Type	Female
Body Material	Technical Polymer	Configuration	Pipe to Port
Connection 1 Size	63 mm	Connection 2 Size	3/4 inch
Shape	Swan Neck	Weight	1,72 lb
Product Style	Quick Assembly Bracket	For Fluid Type	Air Compressed Air, Inert Gas, Vacuum
Quantity per Box	3	Vacuum Pressure Rating	1.0 mbar
Assembly	Drop	Silicone Free	Yes
