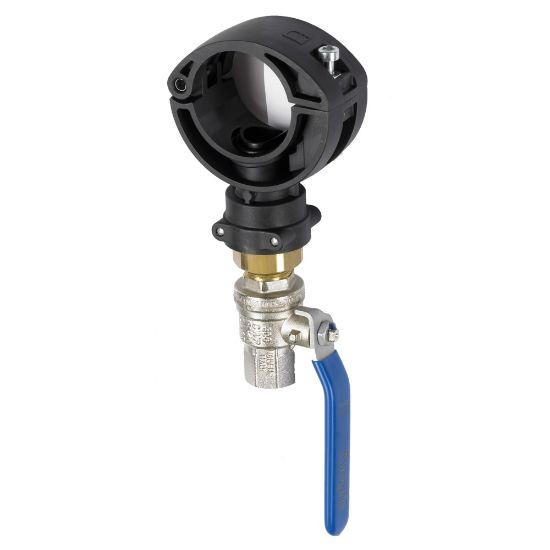

Picture of Transair® Drop Brackets for Aluminum Pipe - EA98 25 04

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Transair® Drop Brackets for Aluminum Pipe - EA98 25 04

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.
Availability:
Backordered
SKU EA98 25 04
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection 2 TypePressurized System Bracket (Hot Tap Bracket)Connection 1 Size1" (25 mm)
Body MaterialTechnical PolymerConnection 2 SizeG 1/2
Quantity per Box2For Fluid TypeAir Compressed Air, Inert Gas, Vacuum
BrandTransairMaximum Operating Pressure16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
DivisionFluid System Connectors DivisionTechnologyPneumatics
Product TypeCompressed Air PipingBody MaterialTechnical Polymer
Specifications MetASME B31.1 - 31.9IndustryGeneral Industrial
Connection 2 Size1/2 inchShapeSaddle Pre-assembled with ball valves
Connection 1 TypePipeProduct StyleQuick Assembly Bracket
Assembly Time0.05 HoursMaximum Operating Temperature85 °C
Connection 1 Size1 inchSilicone FreeYes
ConfigurationPipe to PortDivisionLow Pressure Connectors Europe Division
ApplicationCompressed AirVacuum Pressure Rating0.03 inch-Hg 99,9% (absolute pressure)
Minimum Operating Temperature-20 °CAssemblyDrop
Connection 2 TypeBSPPWeight0.41 kg
California Residents: Prop-65 Warning
