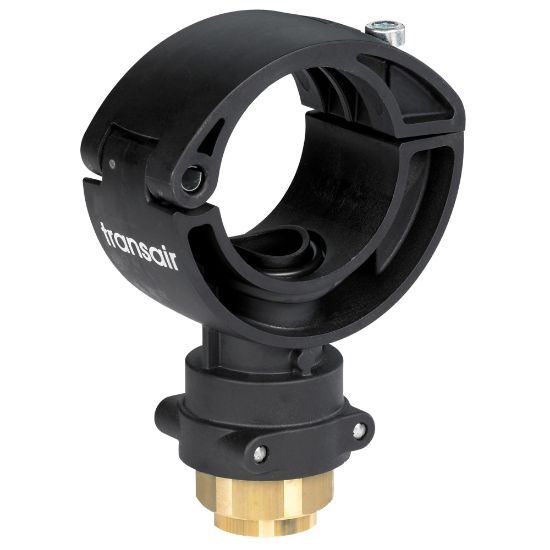

Transair® Drop Brackets for Aluminum Pipe - RA65 50 08

Name: Transair® Drop Brackets for Aluminum Pipe - RA65 50 08
SKU: RA65 50 08

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:

Backordered

SKU RA65 50 08

POR

Qty:

Products specifications

Attribute name	Attribute value
Connection 1 Size	2" (50 mm)	Body Material	Technical Polymer
Connection 2 Type	Female Threaded BSP Simple Reducing Bracket	Connection 2 Size	1"
Industry	General Industrial	Vacuum Pressure Rating	1.0 mbar 99,9% (absolute pressure)
Product Style	Quick Assembly Bracket	Specifications Met	EN 755.2
Connection 1 Type	Pipe	Silicone Free	Yes
Assembly Time	0.05 Hours	Connection 1 Size	50 mm
Minimum Operating Temperature	-20 °C	Maximum Operating Temperature	185 °F
Connection 2 Type	BSPP	Application	Compressed Air
Division	Low Pressure Connectors Europe Division	Configuration	Pipe to Port
Assembly	Drop	For Fluid Type	Industrial Gas
Shape	Saddle	Brand	Transair
Quantity per Box	5	Division	Low Pressure Connectors Europe Division
Maximum Operating Pressure	232 psi	Weight	0,326 kg
Connection 2 Size	G 1	Body Material	Technical Polymer
Product Type	Compressed Air Piping	Technology	Pneumatics
