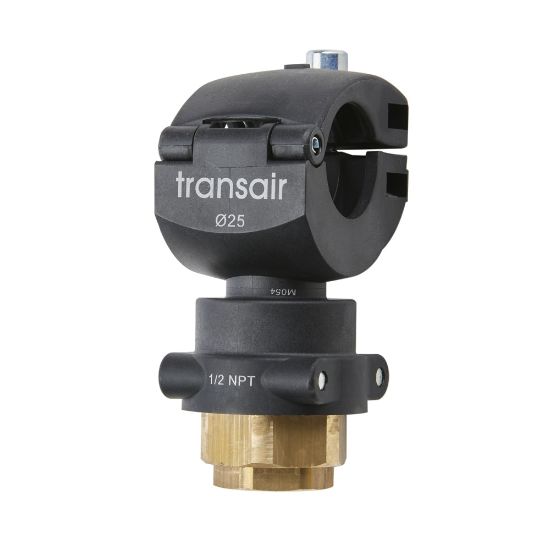

Transair® Drop Brackets for Aluminum Pipe - RA68 40N04

Name: Transair® Drop Brackets for Aluminum Pipe - RA68 40N04
SKU: RA68 40N04

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:

Backordered

SKU RA68 40N04

POR

Qty:

Products specifications

Attribute name	Attribute value
Connection 2 Type	Female Threaded NPT Simple Reducing Bracket	Connection 1 Size	1-1/2" (40 mm)
Body Material	Technical Polymer	Connection 2 Size	1/2"
Minimum Operating Temperature	-20 °C	Assembly Time	0.07 Hours
Assembly	Drop	Division	Fluid System Connectors Division
Brand	PARKER	Body Material	Technical Polymer
Maximum Operating Pressure	232 psi	Specifications Met	ASME B31.1 - 31.9
Technology	Pneumatics	Product Type	Compressed Air Piping
Connection 1 Size	40 mm	Quantity per Box	5
Product Style	Quick Assembly Bracket	Industry	General Industrial
Vacuum Pressure Rating	1.0 mbar 99,9% (absolute pressure)	Silicone Free	Yes
Weight	0,42 lb	Connection 2 Type	NPT
Connection 1 Type	Pipe	Maximum Operating Temperature	85 °C
Connection 2 Size	1/2 inch	Division	Low Pressure Connectors Europe Division
Configuration	Pipe to Port	For Fluid Type	Air
Application	Compressed Air	Shape	Simple Reducing
