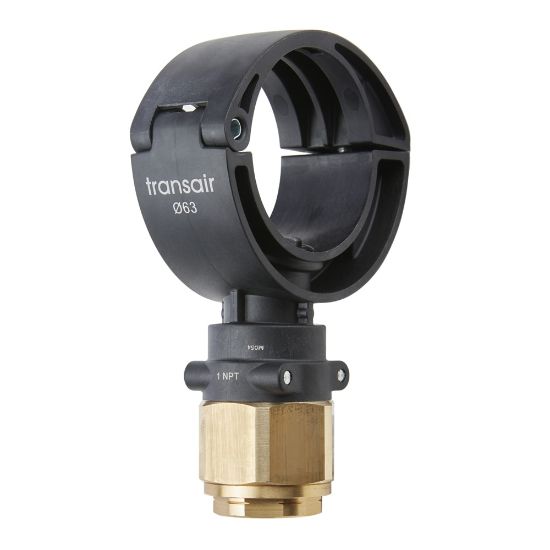

Transair® Drop Brackets for Aluminum Pipe - RA68 63N04

Name: Transair® Drop Brackets for Aluminum Pipe - RA68 63N04
SKU: RA68 63N04

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:

Backordered

SKU RA68 63N04

POR

Qty:

Products specifications

Attribute name	Attribute value
Body Material	Technical Polymer	Connection 2 Type	Female Threaded NPT Simple Reducing Bracket
Connection 2 Size	1/2"	Connection 1 Size	2-1/2" (63 mm)
Maximum Operating Temperature	185 °F	Specifications Met	TUV
For Fluid Type	Air	Application	Compressed Air
Assembly	Drop	Weight	0,6 lb
Configuration	Pipe to Port	Division	Fluid System Connectors Division
Vacuum Pressure Rating	0.03 inch-Hg 99,9% (absolute pressure)	Division	Low Pressure Connectors Europe Division
Brand	PARKER	Body Material	Technical Polymer
Maximum Operating Pressure	232 psi	Quantity per Box	5
Shape	Saddle	Technology	Fluid & Gas Handling
Product Type	Compressed Air Piping	Industry	General Industrial
Product Style	Quick Assembly Bracket	Assembly Time	0.05 Hours
Silicone Free	Yes	Minimum Operating Temperature	-4 °F
Connection 2 Type	NPT	Connection 1 Type	Pipe
Connection 2 Size	1/2 inch	Connection 1 Size	2-1/2 inch
