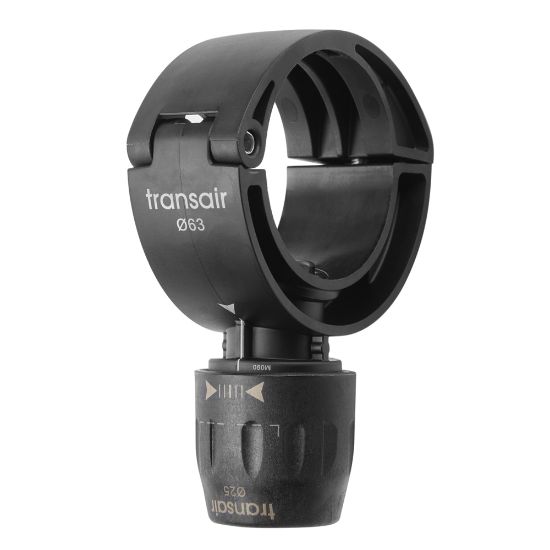

Transair® Drop Brackets for Aluminum Pipe - RA69 50 25

Name: Transair® Drop Brackets for Aluminum Pipe - RA69 50 25
SKU: RA69 50 25

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:

Backordered

SKU RA69 50 25

POR

Qty:

Products specifications

Attribute name	Attribute value
Connection 2 Type	Simple Reducing Bracket	Connection 1 Size	2" (50 mm)
Body Material	Technical Polymer	Connection 2 Size	1" (25 mm)
Quantity per Box	5	For Fluid Type	Air Compressed Air, Inert Gas, Vacuum
Connection 2 Size	1 inch	Brand	Transair
Division	Fluid System Connectors Division	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Configuration	Pipe to Pipe	Connection 1 Type	Pipe
Maximum Operating Temperature	85 °C	Product Type	Compressed Air Piping
Technology	Fluid & Gas Handling	Body Material	Technical Polymer
Connection 2 Type	Pipe	Connection 1 Size	2 inch
Industry	General Industrial	Vacuum Pressure Rating	0.03 inch-Hg
Product Style	Quick Assembly Bracket	Silicone Free	Yes
Weight	0,143 kg	Division	Low Pressure Connectors Europe Division
Application	Compressed Air	Assembly	Drop
Specifications Met	EN 573.3	Assembly Time	0.07 Hours
Minimum Operating Temperature	-20 °C	Shape	Simple Reducing
