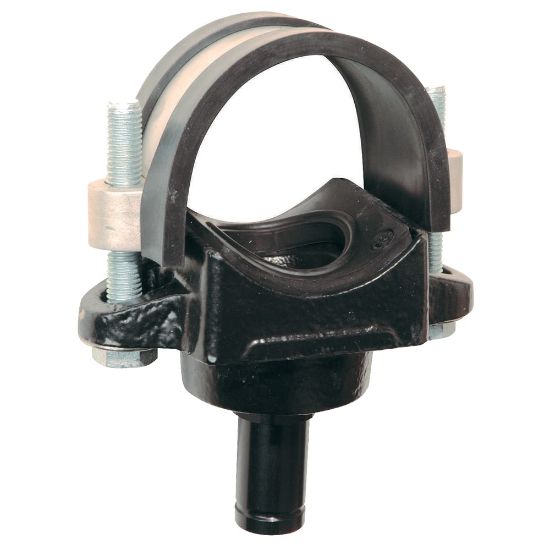

Transair® Drop Brackets for Aluminum Pipe - RR63 L3N08

Name: Transair® Drop Brackets for Aluminum Pipe - RR63 L3N08
SKU: RR63 L3N08

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:

Backordered

SKU RR63 L3N08

POR

Qty:

Products specifications

Attribute name	Attribute value
Connection 2 Type	Female Threaded NPT Saddle Reducing Bracket	Body Material	Cast Iron / Zinc-plated
Connection 2 Size	1"	Connection 1 Size	4" (101 mm)
Connection 1 Size	4 inch	Industry	1
Product Type	1	Minimum Operating Temperature	-4 °F
Product Style	Quick Assembly Bracket	Silicone Free	Yes
For Fluid Type	Industrial Gas Compressed Air, Inert Gas, Vacuum	Brand	1
Connection 1 Type	Pipe	Maximum Operating Pressure	16 bar
Quantity per Box	1	Connection 2 Type	Stem Pipe with adaptor preassembled
Division	Low Pressure Connectors Europe Division	Technology	5
Body Material	Cast iron\|Zinc-Plated	Shape	Saddle
Specifications Met	ASME B31.1 - 31.9	Connection 2 Size	1 inch with adaptor preassembled
Weight	4.25 lb	Division	Low Pressure Connectors Europe Division
Configuration	Pipe to Port	Assembly	Drop
Vacuum Pressure Rating	0.03 inch-Hg 99,9% (absolute pressure)	Assembly Time	0.1 Hours
Application	10	Plating Type	Zinc-plated
Maximum Operating Temperature	185 °F
