*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

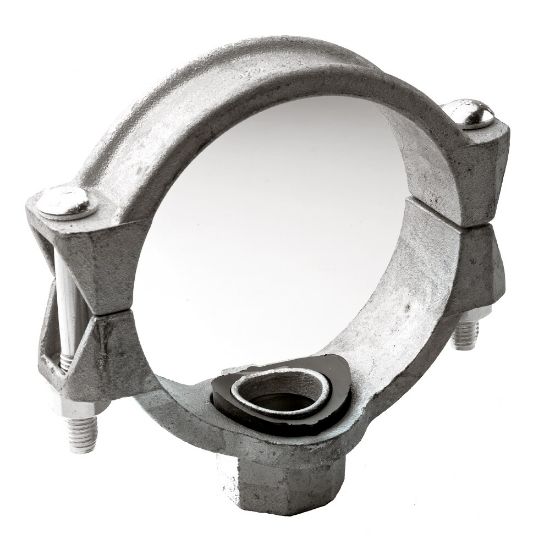

Transair® Drop Brackets for Aluminum Pipe - RR63 L8 24

Name: Transair® Drop Brackets for Aluminum Pipe - RR63 L8 24
SKU: RR63 L8 24

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:

Backordered

SKU RR63 L8 24

POR

Qty:

Products specifications

Attribute name	Attribute value
Connection 2 Type	Female Threaded BSP Saddle Reducing Bracket	Connection 1 Size	6" (168 mm)
Body Material	Cast Iron / Zinc-plated	Connection 2 Size	3"
Connection 2 Size	G 3	Vacuum Pressure Rating	0.03 inch-Hg 99,9% (absolute pressure)
Maximum Operating Temperature	185 °F	Connection 2 Type	BSPP
Application	In Plant Pneumatic	Minimum Operating Temperature	-20 °C
Division	Low Pressure Connectors Europe Division	Configuration	Pipe to Port
Assembly	Drop	Plating Type	Zinc-plated
Connection 1 Size	6 inch	Maximum Operating Pressure	188 psi
Industry	General Industrial	Product Style	Quick Assembly Bracket
Silicone Free	Yes	Weight	4.7 kg
Assembly Time	0.05 Hours	Specifications Met	EN 755.8
Connection 1 Type	Pipe	Quantity per Box	1
Brand	PARKER	Division	Low Pressure Connectors Europe Division
Product Type	Compressed Air Piping	Technology	Fluid & Gas Handling
Body Material	Cast iron\|Zinc-Plated	For Fluid Type	Air Compressed Air, Inert Gas, Vacuum
Shape	Saddle
