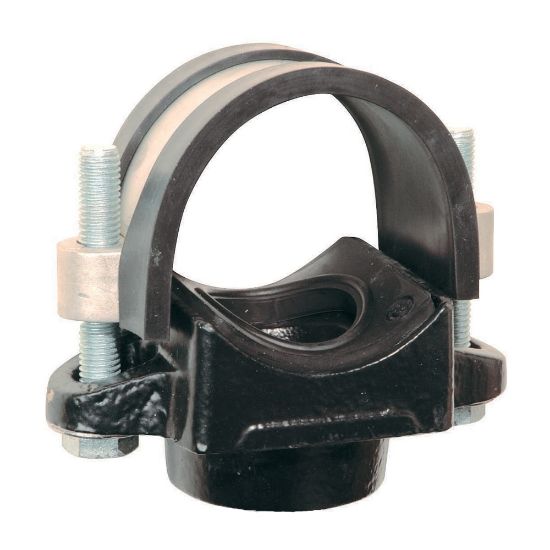

Transair® Drop Brackets for Stainless Steel Pipe - RR82 L3 08 01

Name: Transair® Drop Brackets for Stainless Steel Pipe - RR82 L3 08 01
SKU: RR82 L3 08 01

Transair drop brackets for stainless steel pipe are designed for quick and easy installation into Transair stainless steel pipe. For maximum checmical compatability, these brackets are offered with EPDM or FKM seals.

Availability:

Backordered

SKU RR82 L3 08 01

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	101	Seal Material	EPDM
Pipe O.D. (inch)	4	Product Style	Female BSP Saddle Reducing Bracket
Seal Material	EPDM	Division	Fluid System Connectors Division
Vacuum Pressure Rating	0.03 inch-Hg	Maximum Operating Temperature	194 °F
Minimum Operating Temperature	-4 °F	Pipe Outside Diameter	4 inch
Product Type	Quick Assembly Bracket	Brand	Transair
Quantity per Box	1.0	Weight	1.68 kg
Application	Chemical Transfer	Maximum Operating Pressure	10 bar
Assembly Time	0.1 Hours	Division	Fluid System Connectors Division

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials

Transair Master Catalog (PDF)

Selector Guides

Transair Chemical Compatibility Chart for Stainless Steel Pipe (PDF)
