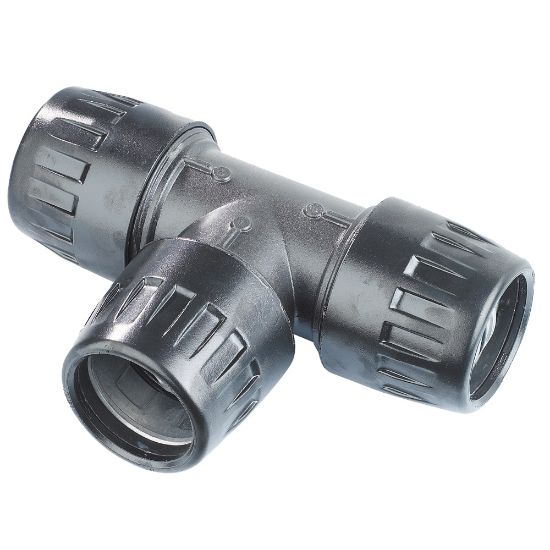

Transair® Fittings for Aluminum Pipe - 6604 63 00

Name: Transair® Fittings for Aluminum Pipe - 6604 63 00
SKU: 6604 63 00

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU 6604 63 00

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	63	Pipe O.D. (inch)	2-1/2
Connection Thread Size (inch)	n/a	Silicone Free	Yes
Product Style	Pipe	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A	Brand	Transair
Division	Low Pressure Connectors Europe Division	Product Type	Compressed Air Piping
Minimum Operating Temperature	-4 °F	Division	Low Pressure Connectors Europe Division
Industry	General Industrial	Application	Industrial Gas
Specifications Met	TUV	Vacuum Pressure Rating	1 mbar
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Maximum Operating Temperature	185 °F
Technology	Pneumatics	Body Material	Treated Aluminum
Configuration	Pipe to Pipe	For Fluid Type	Air
Connection 1 Type	Pipe	Connection 2 Type	Pipe
Quantity per Box	2	Connection 1 Size	2-1/2 inch
Connection 2 Size	2-1/2 inch	Shape	Equal Tee
Weight	1.435 kg	Assembly Time	0.09 Hours
Product Style	Union Fitting
