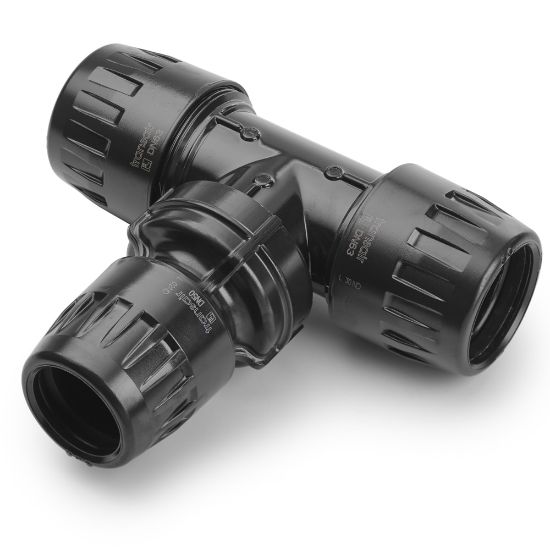

Transair® Fittings for Aluminum Pipe - 6604 63 50

Name: Transair® Fittings for Aluminum Pipe - 6604 63 50
SKU: 6604 63 50

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU 6604 63 50

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	63	Pipe O.D. (inch)	2-1/2
Connection Thread Size (inch)	n/a	Silicone Free	Yes
Product Style	Pipe	Pipe O.D. 2 (mm)	50
Pipe O.D. 2 (inch)	2	Brand	PARKER
Product Type	Compressed Air Piping	Minimum Operating Temperature	-20 °C
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	85 °C
Division	Fluid System Connectors Division	Industry	General Industrial
Technology	Fluid & Gas Handling	Application	Compressed Air
Specifications Met	ISO 9001	Vacuum Pressure Rating	1 mbar
Maximum Operating Pressure	232 psi	Assembly Time	0.1 Hours
Body Material	Treated Aluminum	Configuration	Pipe to Pipe
For Fluid Type	Air	Connection 1 Type	Pipe
Quantity per Box	1	Connection 2 Type	Pipe
Connection 1 Size	2-1/2 inch	Connection 2 Size	50 mm
Shape	Reducing Tee	Weight	1.644 kg
Product Style	Union Fitting
