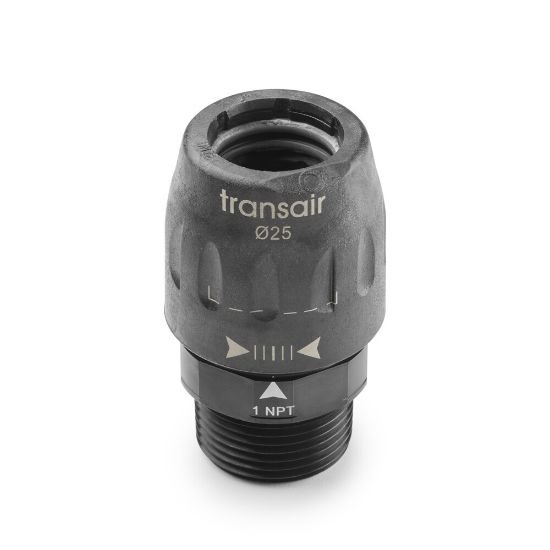

Transair® Fittings for Aluminum Pipe - 6605 25 21

Name: Transair® Fittings for Aluminum Pipe - 6605 25 21
SKU: 6605 25 21

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU 6605 25 21

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	25	Pipe O.D. (inch)	1
Silicone Free	Yes	Connection Thread Size (inch)	1/2
Product Style	Male BSPT	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A	Brand	PARKER
Division	Low Pressure Connectors Europe Division	Product Type	Compressed Air Piping
Minimum Operating Temperature	-20 °C	Shape	Straight
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	85 °C
Industry	General Industrial	Application	Compressed Air
Specifications Met	TUV	Vacuum Pressure Rating	0.03 inch-Hg
Maximum Operating Pressure	232 psi	Technology	Pneumatics
Body Material	Treated Aluminum	For Fluid Type	Air
Connection 1 Type	Pipe	Quantity per Box	1
Weight	0.1659 kg	Assembly Time	0.17 Hours
Configuration	Pipe to Port	Product Style	Stud Fitting
Connection 1 Size	25 mm	Connection 2 Size	R 1/2 inch
Connection 2 Type	Male BSPT
