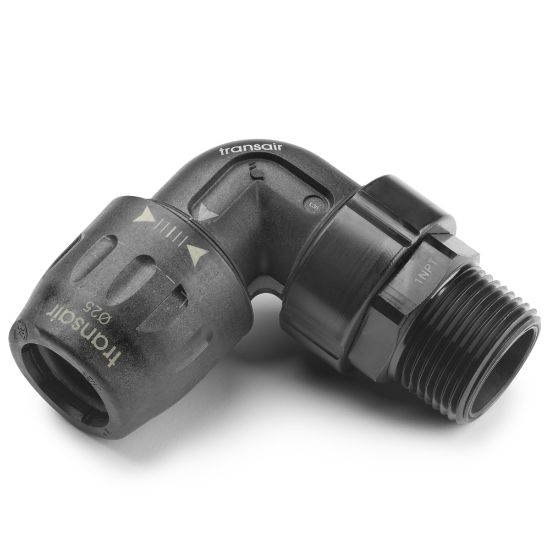

Transair® Fittings for Aluminum Pipe - 6609 17 13

Name: Transair® Fittings for Aluminum Pipe - 6609 17 13
SKU: 6609 17 13

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU 6609 17 13

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	16.5	Pipe O.D. (inch)	1/2
Silicone Free	Yes	Connection Thread Size (inch)	1/4
Product Style	Male BSPT	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A	Brand	PARKER
Division	Low Pressure Connectors Europe Division	Product Type	Compressed Air Piping
Minimum Operating Temperature	-4 °F	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	85 °C	Industry	General Industrial
Technology	Fluid & Gas Handling	Application	Compressed Air
Specifications Met	CE 2014/68/EU	Vacuum Pressure Rating	1 mbar
Maximum Operating Pressure	232 psi	For Fluid Type	Industrial Gas
Connection 1 Type	Pipe	Quantity per Box	1
Shape	Elbow 90°	Body Material	Technical Polymer
Assembly Time	0.17 Hours	Configuration	Pipe to Port
Product Style	Stud Fitting	Connection 1 Size	16.5 mm
Connection 2 Size	R 1/4 inch	Connection 2 Type	Male BSPT
Weight	0.229 lb
