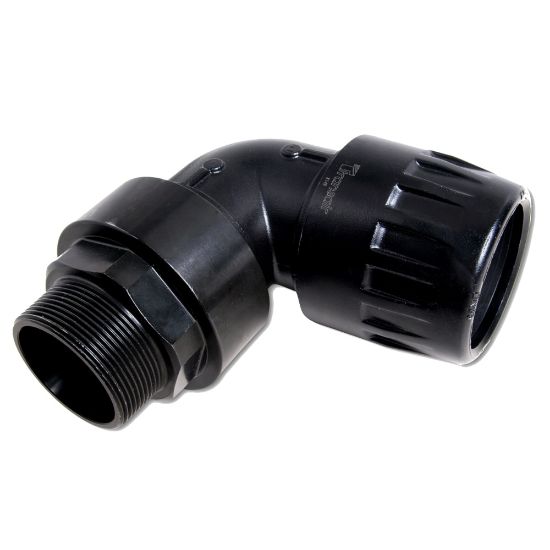

Picture of Transair® Fittings for Aluminum Pipe - 6609 50 49

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Transair® Fittings for Aluminum Pipe - 6609 50 49

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.
Availability:
Backordered
SKU 6609 50 49
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Pipe O.D. (mm)50Pipe O.D. (inch)2
Silicone FreeYesConnection Thread Size (inch)1-1/2
Product StyleMale BSPTPipe O.D. 2 (mm)N/A
Pipe O.D. 2 (inch)N/ABrandTransair
DivisionLow Pressure Connectors Europe DivisionProduct TypeCompressed Air Piping
Minimum Operating Temperature-4 °FDivisionLow Pressure Connectors Europe Division
IndustryGeneral IndustrialApplicationIndustrial Gas
Specifications MetEN 573.3Vacuum Pressure Rating0.03 inch-Hg
Maximum Operating Pressure16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/caMaximum Operating Temperature185 °F
TechnologyPneumaticsBody MaterialTreated Aluminum
For Fluid TypeAirConnection 1 TypePipe
Quantity per Box1ShapeElbow 90°
Assembly Time0.17 HoursConfigurationPipe to Port
Product StyleStud FittingConnection 1 Size2 inch
Connection 2 SizeR 1-1/2 inchConnection 2 TypeMale BSPT
Weight0.82 kg
