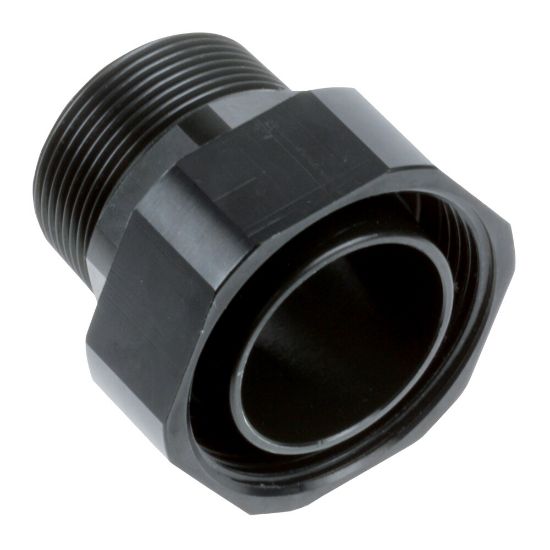

Transair® Fittings for Aluminum Pipe - 6611 17 21

Name: Transair® Fittings for Aluminum Pipe - 6611 17 21
SKU: 6611 17 21

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU 6611 17 21

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	16.5	Pipe O.D. (inch)	1/2
Silicone Free	Yes	Connection Thread Size (inch)	1/2
Product Style	Male BSPT	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A	Brand	Transair
Division	Low Pressure Connectors Europe Division	Product Type	Compressed Air Piping
Minimum Operating Temperature	-4 °F	Shape	Straight
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	85 °C
Industry	General Industrial	Specifications Met	EN 573.3
Vacuum Pressure Rating	1 mbar	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Technology	Pneumatics	Body Material	Treated Aluminum
For Fluid Type	Industrial Gas	Connection 1 Type	Pipe
Quantity per Box	2	Application	Inert Gas
Assembly Time	0.17 Hours	Connection 1 Size	16.5 mm
Connection 2 Size	R 1/2 inch	Connection 2 Type	Male BSPT
Weight	0.15 kg	Configuration	Port to Swivel Port
Product Style	Stud Fitting with Nut
