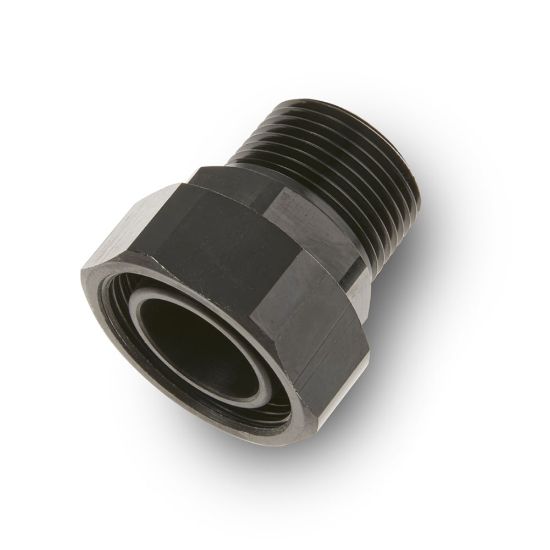

Transair® Fittings for Aluminum Pipe - 6611 40 43

Name: Transair® Fittings for Aluminum Pipe - 6611 40 43
SKU: 6611 40 43

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU 6611 40 43

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	40	Pipe O.D. (inch)	1-1/2
Silicone Free	Yes	Connection Thread Size (inch)	1-1/4
Product Style	Male NPT	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A	Brand	PARKER
Product Type	Compressed Air Piping	Minimum Operating Temperature	-4 °F
Shape	Straight	Division	Low Pressure Connectors Europe Division
Division	Fluid System Connectors Division	Industry	General Industrial
Application	Compressed Air	Specifications Met	ASME B31.1 - 31.9
Vacuum Pressure Rating	0.03 inch-Hg	Maximum Operating Pressure	232 psi
Maximum Operating Temperature	185 °F	Technology	Pneumatics
Body Material	Treated Aluminum	For Fluid Type	Air
Connection 1 Type	Pipe	Quantity per Box	1
Connection 2 Type	Male NPT	Assembly Time	0.17 Hours
Connection 1 Size	1-1/2 inch	Connection 2 Size	1-1/4 inch
Weight	1.1 lb	Configuration	Port to Swivel Port
Product Style	Stud Fitting with Nut
