Transair® Fittings for Aluminum Pipe - 6611 50 50

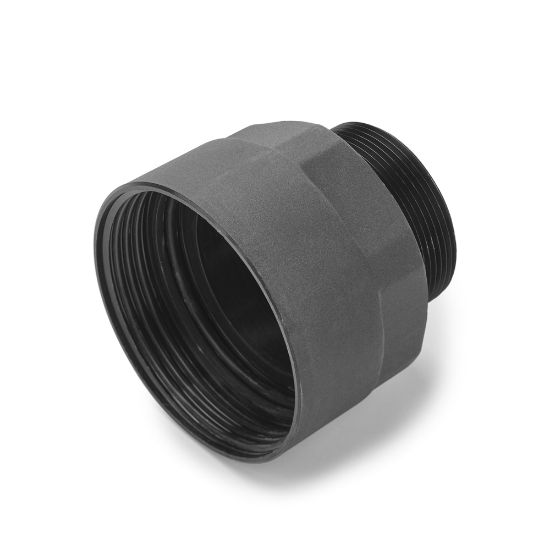

Name: Transair® Fittings for Aluminum Pipe - 6611 50 50
SKU: 6611 50 50

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU 6611 50 50

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	50	Pipe O.D. (inch)	2
Silicone Free	Yes	Connection Thread Size (inch)	1-1/2
Product Style	Male NPT	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A	Brand	Transair
Product Type	Compressed Air Piping	Minimum Operating Temperature	-20 °C
Shape	Straight	Division	Low Pressure Connectors Europe Division
Maximum Operating Temperature	85 °C	Division	Fluid System Connectors Division
Industry	General Industrial	Technology	Fluid & Gas Handling
Application	Vacuum	Specifications Met	CE 2014/68/EU
Vacuum Pressure Rating	0.03 inch-Hg	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Body Material	Treated Aluminum	For Fluid Type	Industrial Gas
Connection 1 Type	Pipe	Quantity per Box	1
Connection 2 Type	Male NPT	Connection 1 Size	50 mm
Connection 2 Size	1-1/2 inch	Assembly Time	0.17 Hours
Weight	0.762 kg	Configuration	Port to Swivel Port
Product Style	Stud Fitting with Nut
