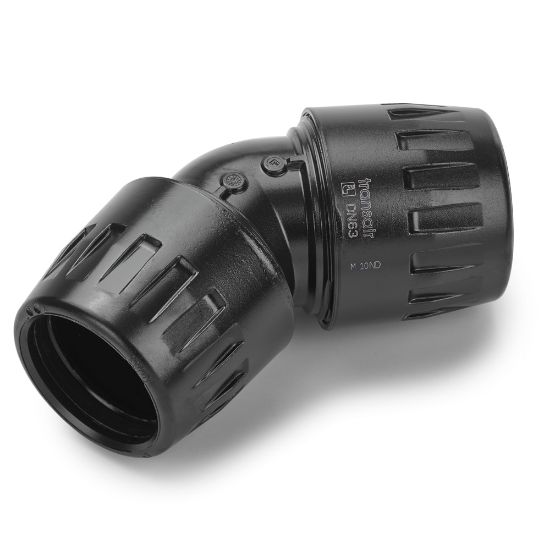

Transair® Fittings for Aluminum Pipe - 6612 50 00

Name: Transair® Fittings for Aluminum Pipe - 6612 50 00
SKU: 6612 50 00

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:

Backordered

SKU 6612 50 00

POR

Qty:

Products specifications

Attribute name	Attribute value
Pipe O.D. (mm)	50	Pipe O.D. (inch)	2
Connection Thread Size (inch)	n/a	Silicone Free	Yes
Product Style	Pipe	Pipe O.D. 2 (mm)	N/A
Pipe O.D. 2 (inch)	N/A	Quantity per Box	4
Brand	Transair	Division	Low Pressure Connectors Europe Division
Product Type	Compressed Air Piping	Minimum Operating Temperature	-4 °F
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	85 °C
Industry	General Industrial	Application	Vacuum
Specifications Met	EN 755.2	Vacuum Pressure Rating	1 mbar
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca	Technology	Pneumatics
Body Material	Treated Aluminum	Configuration	Pipe to Pipe
For Fluid Type	Industrial Gas	Connection 1 Type	Pipe
Connection 2 Type	Pipe	Shape	Elbow 45°
Assembly Time	0.06 Hours	Connection 1 Size	50 mm
Connection 2 Size	50 mm	Product Style	Union Fitting
Weight	0.771 kg
